R88D-WT01H
R88D-WT01H is
In Stock Ships Today!Contact us to place an order or request a quote:
1-800-479-8084 | sales@trwsupply.comProduct Details
- R88D Servo Drive (R88DWT01H)
- Manufacturer: Omron
- Series: R88D
Product Description

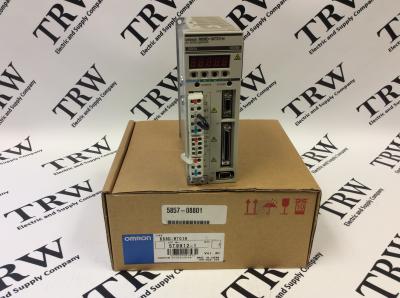

The Omron R88D-WT01H (R88DWT01H) is a servo drive from the R88D series. This servo drive is of the 200V AC single-phase input type. The voltage for both the main and control circuits are 200-230VAC with a permissible stretch of 170 to 253V while the frequency remains at 50/60Hz. The continuous output current (rms) is 0.91A and its momentary maximum output current is 2.8A. The pulse width modulation (PWM) frequency is 11.7kHz.The R88D-WT01H servo drive can be attached to multiple motors of the R88M series: the R88M-W10030H, the R88M-10030T, the WP10030H, and the WP10030T servo motors. All these servo motors have wattages of 100W.
The R88D-WT01H servo drive has a protective structure IP rating of IP10. This protective structure conserves the servo drive from harm with the contact of a large section of the body or solid articles larger than 50mm in diameter, i.e. hand or other object, but lacks protection from moisture intrusion and caustic gasses.
The extraneous features of the R88D-WT01H servo drive are as follows. Below the top cover of the servo drive is a battery compartment. Besides that there are two connectors: the CN8 and the CN5 port. The CN8 port it used to connect the battery to the drive. The other port is an analog output port. Elsewhere, there is a CN3 port that is used to connect to parameter units or for PC communication to the R88D-WT01H drive. Below this port is the CN1 port that connects to control I/Os. And finally, below that is the encoder connector CN2.
Here are the source material that may have been referenced:
https://www.fa.omron.com.cn/data_pdf/closed/mnu/i531-e1-09_r88m-w_r88d-w.pdf?id=66;
https://www.enclosurecompany.com/ip-ratings-explained.php
Technical Specifications
Module Type: R88D-WT01H Servo DriveVoltage/Frequency: 200-230VAC, 1-phase, 50/60Hz
Output Wattage: 100W
Weight: 1.76lbs (0.8kg)
Related Parts
R88D-WT50H - Omron R88D SERVO DRIVE (R88DWT50H)R88D-WT20H - Omron R88D Servo Drive (R88DWT20H)
R88D-WT15H - Omron R88D Servo Drive (R88DWT15H)
