CQM1H-SCB41


Part Number - CQM1H-SCB41

Product PDF: pdf image

CQM1H-SCB41 is

In Stock Ships Today!


Contact us to place an order or request a quote:

1-800-479-8084 | sales@trwsupply.com



Rate the CQM1H-SCB41
4.4/5 on 5 reviews



Product Details

  • CQM1 Serial Communication Inner Board (CQM1HSCB41)
  • Manufacturer: Omron
  • Series: CQM1

Product Description

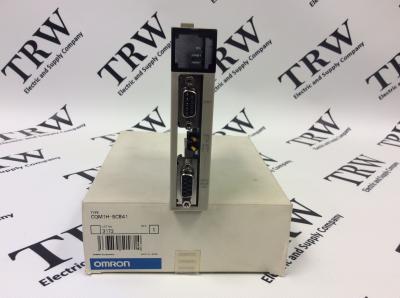

The Omron CQM1H-SCB41 (CQM1H-SCB41) is a CQM1 inner board with serial communication ports. This serial communication inner board can be situated in the first slot of the CQM1H-CPU51 or CQM1H-CPU61. This inner board gives the CPU two ports, the RS-232C and the RS-422A/485. The RS-232C is able to connect with a barcode reader or dedicated controller. The RS-422A/485 can attach to the temperature controller or to a device with either a RS-232C or RS-422A/485 ports.

There are multiple communication modules which the CQM1H-SCB41 inner board can support. Both parts of the inner board support the host link, the protocol macro, no-protocol, 1:1 data link, NT link in 1:1 mode, and NT link in 1:N mode. These communication modules are able to communicate with host computers program devices or terminals and sundry devices. The CQM1H-SCB41 serial communication inner board has as specifications for the ports is 19.2 kbps at a distance of 15 meters for the RS-232C and the 19.2 kbps with a distance of 500 meters.

These ports permit communication with serial devices. Some features that the CQM1H-SCB41 has is that for the 1:N connections without the use of an adapter. The protocol macro designs data communications with half-duplex and start-stop sync serial communication ports. The protocol macro is created on the CX-Protocol Support Software. When the software is recorded on the serial communication board, it can operate with the utilization of the PMCR instruction. This also permits the CQM1H-SCB41 to communicate Omron components like temperature controllers, barcode readers, modems, and intelligent signal processor.

Here is the source material that may have been referenced:
https://www.farnell.com/datasheets/1699916.pdf


Technical Specifications

Part Number: CQM1H-SCB41 (CQM1H-SCB41)
Module Type: Inner Board
Serial Communication Ports
Weight: 0.2lbs (0.09kg)


Related Parts

CQM1-OC222 - Omron CQM1 Control Module (CQM1OC222)
R88D-WT20H - Omron R88D Servo Drive (R88DWT20H)
R88D-WT15H - Omron R88D Servo Drive (R88DWT15H)



Shipping and Order Information

  • TRW Supply can usually ship in stock items same day before 3:30 PM EST for no extra cost and before 5 PM with a rush fee
  • Omron CQM1 Shipping options vary by location. Call for an accurate quote.

Warranty

  • The Omron CQM1H-SCB41 comes with a two year warranty.
  • A three year warranty is available. Please inquire for pricing.
