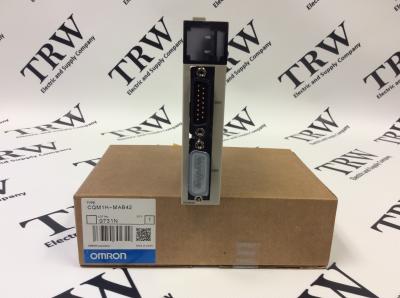

CQM1H-MAB42


Part Number - CQM1H-MAB42

Product PDF: pdf image

CQM1H-MAB42 is

In Stock Ships Today!


Contact us to place an order or request a quote:

1-800-479-8084 | sales@trwsupply.com



Rate the CQM1H-MAB42
5.0/5 on 5 reviews



Product Details

  • CQM1 Input Output Control Module (CQM1HMAB42)
  • Manufacturer: Omron
  • Series: CQM1

Product Description

The Omron CQM1H-MAB42 (CQM1HMAB42) is a CQM1 series input output control module. This control module has an analog inner board with the CQM1-CPU51 and the CQM1H-CPU61 modules both support two inner boards and have slots to fit them. However the analog board can only be placed in the slot 2. In the configuration, that inner board which is in the CPU is positioned by a power supply and other specialized input output modules. The current consumption of the CQM1H-MAB42 which is supplied from the power supply is 400mA when the voltage is 5VDC.

The CQM1H-MAB42 has two ports, one is a CN1 connector which has 1 to 4 analog inputs (four analog inputs) and two supports a CN2 connector with 1 and 2 absolute outputs (two analog outputs). The inputs have voltage and current inputs while likewise the outputs have voltage and current inputs. The voltage input can either range from -10 to 10V, 0 to 10V, or 0 to 5V and the external input impedance of 1 MΩ. The current input of the CQM1H-MAB42 is 0 to 20mA while the impedance is 250Ω. For the outputs, the voltage has a signal range of -10 to 10V and the load resistance is 2 KΩ; current is commensurate with the current input except that its load resistance 350Ω. The resolution for any input and the voltage output is 1/4,096. The current output resolution is 1/2,048.

The dimensions of the CQM1H-MAB42 input output control module is 25mm by 110mm by 107mm (0.98in by 4.33in by 4.21in) and its weight is 0.22lbs (0.1kg).

Here is the source material that may have been referenced:
https://www.farnell.com/datasheets/1699916.pdf


Technical Specifications

Part Number: CQM1H-MAB42 (CQM1HMAB42)
Module Type: Input Output Control Module
Number of Input Output Points: 6
Weight: 0.22lbs (0.1kg)


Related Parts

CQM1H-OC222 - Omron Control Module
CQM1H-SCB41 - Omron CQM1 Serial Communication Board
CQM1-OD212 - Omron CQM1 Output Control Module



Shipping and Order Information

  • TRW Supply can usually ship in stock items same day before 3:30 PM EST for no extra cost and before 5 PM with a rush fee
  • Omron CQM1 Shipping options vary by location. Call for an accurate quote.

Warranty

  • The Omron CQM1H-MAB42 comes with a two year warranty.
  • A three year warranty is available. Please inquire for pricing.
