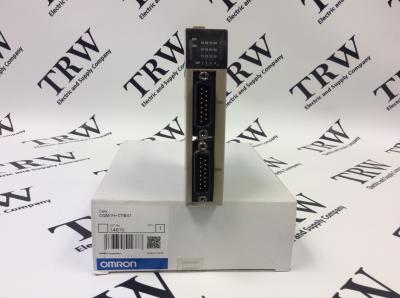

CQM1H-CTB41


Part Number - CQM1H-CTB41

Product PDF: pdf image

CQM1H-CTB41 is


Available


Contact us to place an order or request a quote:

1-800-479-8084 | sales@trwsupply.com



Rate the CQM1H-CTB41
5.0/5 on 1 review


Product Details

  • CQM1 Counter Control Module (CQM1HCTB41)
  • Manufacturer: Omron
  • Series: CQM1

Product Description

The Omron CQM1H-CTB41 (CQM1HCTB41) is a CQM1 series control module that has a high-speed counter. The counter control module has a high-speed board that can be placed in either a CQM1H-CPU51 or a CQM1H-CPU11. The configuration of this board may slide into either of the two slots in the CPU control module. The board can have up to 4 pulse inputs. There are two ports which shape with a CN1 and CN2 connector with each port having two of the pulse inputs. Connectors that are compatible with those ports are the XM2D-1501 socket and the XM2S-1511 hood.

The high-speed counter control module pulses the CQM1H-CTB41 to have pulses from 50 to 500kHz. There are three input modes which are adumbrated: the differential phase mode, the up/down mode, and the pulse/directional mode. The CTB41 is able to perform comparison operations when the present value (PV) when the counter matches a target value is framed, the bit pattern shown in the comparison table in the manual is stockpiled in the internal and external output bits. Four external outputs are generated when the target value is replicated or the range comparison condition is satisfied.

In the differential phase mode whose counting speed is 25 or 250kHz has two phase signals with the multiples of 1x, 2x, or 4x. The up or down mode of the CQM1H-CTB41 whose counting speed is 50 or 500 kHz has two phases. Phase A has an incrementing pulse while phase B has a decrementing pulse. The pulse/direction mode whose counting speed 50 or 500kHz also has two phases; phase a is a pulse signal while phase B is a direction signal.

Here is the source material that may have been referenced:
https://www.farnell.com/datasheets/1699916.pdf


Technical Specifications

Part Number: CQM1H-CTB41 (CQM1HCTB41)
Module Type: Counter Control Module
Input High-Speed Counter
Number of Pulse Input Points: 4
Weight: 0.2lbs (0.09kg)


Related Parts

CQM1-CPU21 - CQM1 Control Module (CQM1CPU21)
CQM1-OC222 - CQM1 Output Control Module (CQM1OC222)
CJ1M-CPU21 - Omron CJ1 Control Module (CJ1MCPU21)



Shipping and Order Information

  • TRW Supply can usually ship in stock items same day before 3:30 PM EST for no extra cost and before 5 PM with a rush fee
  • Omron CQM1 Shipping options vary by location. Call for an accurate quote.

Warranty

  • The Omron CQM1H-CTB41 comes with a two year warranty.
  • A three year warranty is available. Please inquire for pricing.
