CQM1H-CPU61


Part Number - CQM1H-CPU61

Product PDF: pdf image

CQM1H-CPU61 is

In Stock Ships Today!


Contact us to place an order or request a quote:

1-800-479-8084 | sales@trwsupply.com



Rate the CQM1H-CPU61
2.0/5 on 20 reviews



Product Details

  • CQM1 Input Output Control Module (CQM1HCPU61)
  • Manufacturer: Omron
  • Series: CQM1

Product Description

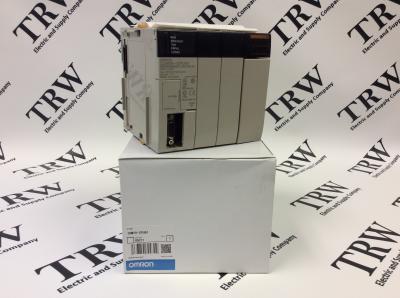

The Omron CQM1H-CPU61 (CQM1HCPU61) is a CQM1 series input output control module with 512 points. This control module is used primarily to mount a high-speed counter board. There are also two ports built-in: a mini-peripheral port and a RS-232C port. The RS-232C port is utilized for host links, data links, and NT links. The mini-peripheral port hitches to programming devices like a host computer. The CQM1H-CPU61 also has a battery compartment where the battery, memory cassette, and a DIP switch may be accessed.

The CQM1H-CPU61 control module may connect, in the Omron configuration, to various modules. On one side, the CPU needs to connect with a controller link module and the power supply and on the other side; the CPU can connect to many dedicated and specialized input output control modules with up to 11 modules because it cannot exceed 512 I/O points, but it can be lifted up to 16 module maximum if an I/O expansion and control interface module used. The modules may connect to the CQM1H-CPU61 by the connectors which have been horizontally integrated to the CPU and sliders on top which fastens the modules together. The configuration may also be mounted on a DIN track. Screw mounting cannot be used and a backplane is superfluous because the modules already append to each other because of their connectors.

The CQM1H-CPU61 input output control module has a program capacity of 15.2K words. Its data memory (DM) capacity is 6K words and an extended memory (EM) of 6K words. Finally, the incorporated inputs built-in to the CPU module is 16 (DC).

Here are the source material that may have been referenced:
https://media.digikey.com/pdf/Data%20Sheets/Omron%20PDFs/CQM1H.pdf
http://cqm1.ru/techdocs/cqm1h-cpu-datasheet.pdf


Technical Specifications

Part Number: CQM1H-CPU61 (CQM1HCPU61)
Module Type: Input Output Control Module
Number of Input Output Points: 512
Weight: 1lb. (Approx.)
