CQM1H-CLK21


Part Number - CQM1H-CLK21

Product PDF: pdf image

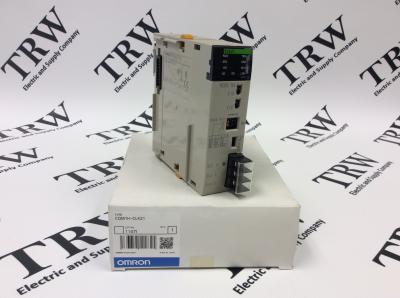

CQM1H-CLK21 is

In Stock Ships Today!


Contact us to place an order or request a quote:

1-800-479-8084 | sales@trwsupply.com



Rate the CQM1H-CLK21
5.0/5 on 1 review



Product Details

  • CQM1 Link Control Module (CQM1HCLK21)
  • Manufacturer: Omron
  • Series: CQM1

Product Description

The Omron CQM1H-CLK21 (CQM1HCLK21) is a CQM1 series link control module with a communication network. This network sanctions facilely accommodates the sending and gathering big data packets between PLC units from the following Omron series: the CQM1H, the C200HX/HG/HE, the CS1, the CVM1, and the CV. The communication method of the CQM1H-CLK21 controller link is an N:N token bus. The control module also can be applied to either the CQM1H-CPU51 or CQM1H-CPU61 CPU unit. The way that the CPU unit is applied to the controller link module is by using the Omron configuration and by affixing using the connectors positioned on the side of the module and the sliders placed on the top and bottom of the CPU modules. The CQM1H-CLK21 must also be connected to the power supply in the Omron configuration for proper functioning.

The dimension of the CQM1H-CLK21 control module is, measuring the width, height, and depth, is 32mm by 110mm by 107mm (1.26in by 4.33in by 4.21in). The weight of this controller link is 0.37lbs (0.17kg)

The CQM1H-CLK21 link control module has a current consumption of 270mA when the voltage is 5VDC. The number of bytes that may be with a message is 2,012 bytes. The baud rate can change, and based on this bud rate, there will be a prescribed maximum transmission distance. If the baud rate is 2Mbps, the consequent transmission distance is 500m, if the rate is 1Mbps, the transmission can go 800m, and if the rate is 500kbps the distance is 1km.
