CQM1-TC101
Product PDF:
CQM1-TC101 is
In Stock Ships Today!Contact us to place an order or request a quote:
1-800-479-8084 | sales@trwsupply.com
Rate the CQM1-TC101
5.0/5 on 1 review
Product Details

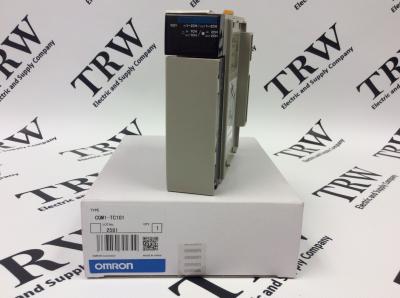

- CQM1 Temperature Control Module TC 101 (CQM1TC101)
- Manufacturer: Omron
- Series: CQM1
Product Description
The Omron CQM1-TC101 (CQM1TC101) is a temperature control module from the CQM1 series. This module, when incorporated in the Omron configuration is placed between an Omron end cover and a CQM1-TC00[]/20[]. Besides that may be another specialized module or a CPU unit from the CQM1H series and power supply. This module is able to control a platinum resistance thermometer input. This module’s control mode is the PID (Proportional, Integral and Derivative) control mode ensures that the temperature module can maintain apt temperature range.The input sensors types that the CQM1-TC101 has is the JPt and the Pt sensors. The JPt sensor type controls the temperature range of the platinum resistance thermometer from -99.9 to 450.0 degrees Celsius (99.9 to 800.0 degrees Fahrenheit). The Pt sensor has exactly the same temperature range as the JPt sensor. The temperature adjustment is 0.8 degrees Celsius/Fahrenheit. The CQM1-TC101 also has to control loops, and can use either one or both of them. The transistor output of this control module is an NPN (negative-positive-negative) which has a negative emitter and collector but a positive base.
The CQM1-TC101 temperature control module has an internal current consumption of 220mA at 5VDC. The external supply voltage is at 15mA as the minimum if the voltage is 24VDC, however it can waver between +10% and -15%. The output has a maximum switching capacity of 100mA if the voltage is the same as that of the external power supply. The leakage current is 0.3mA and the residual voltage is 3.0V.
