CQM1-OD214

Product PDF:

CQM1-OD214 is

In Stock Ships Today!

Contact us to place an order or request a quote:

1-800-479-8084 | sales@trwsupply.com

Rate the CQM1-OD214

4.7/5 on 3 reviews

Product Details

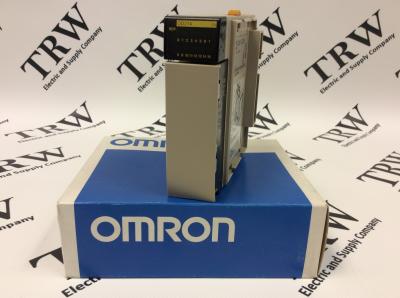

CQM1 Output Control Module (CQM1OD214)
Manufacturer: Omron
Series: CQM1

Product Description

The Omron CQM1-OD214 (CQM1OD214) is an CQM1 series output control module. The control module deploys a PNP transistor with 16 output points and there are 18 terminals on the screw terminal. The OD214 output control module has terminals that are named A0-A8 and B0-B8. Each terminal produces its own output points (all the points are members of a circuit) except for A8 and B8. A8 is 0V terminal and B8 is a COM terminal.

Within the Omron configuration for the CQM1-OD214 control module can be positioned next to a CPU unit (the CQM1-CPU11-E, 21-E or the CQM1-CPU41-EV1, 42-EV1, 43-EV1, or 44-EV1) or other specialized input output modules. The configuration is made by the appending of connectors which are on the side of the module. The sliders on the modules then effectively fasten them together. This configuration may then be installed on a DIN track and secured by the DIN track mounting pins which are on the bottom of each module including the CQM1-OD214.

The CQM1-OD214 control module has a maximum switching capacity of 50 to 300mA when the voltage is within 4.5 to 26.4V. The leakage current however is 0.1mA and the residual voltage is 0.8V. The current consumption that the CQM1-OD214 control module has is 170mA at most when the voltage is at 5VDC. The service power supply is a minimum of 60mA (because each output point is 3.5mA, which equals 60mA) with a voltage of 5 to 24V that can waver between ±10%. The ON delay of this module is 0.1ms while the OFF delay is a little longer at 0.4ms.

Here is the source material that may have been referenced:
https://www.farnell.com/datasheets/1699916.pdf

Technical Specifications

Part Number: CQM1-OD214 (CQM1OD214)
Module Type: Output Control Module
Number of Output Points: 16
Weight: 0.46lbs (0.21kg)

Related Parts

CQM1-IA121 - Omron CQM1 Input Control Module
CQM1-ID211 - Omron CQM1 Input Control Module
CQM1-IPS02 - Omron Sysmac PLC POWER SUPPLY Control Module

Shipping and Order Information

TRW Supply can usually ship in stock items same day before 3:30 PM EST for no extra cost and before 5 PM with a rush fee
Omron CQM1 Shipping options vary by location. Call for an accurate quote.

Warranty

The Omron CQM1-OD214 comes with a two year warranty.
A three year warranty is available. Please inquire for pricing.

Additional Information

TRW Electric & Supply Company is a global automation supplier. We deliver reliable new and refurbished parts at a great value. Our product focus is Omron and Mitsubishi products, but we have been able to provide our customers with solutions from other manufacturers as well. Our goal is to supply the automation industry with the best service and pricing, and of course conduct business with a high level of integrity.

Authorized Distributors

A Omron Authorized Distributor for CQM1 is not the only source for Omron products. Many of the Omron products have been discontinued and therefore are no longer available from authorized suppliers. TRW Electric & Supply has many new and refurbished Omron CQM1 parts available for purchase.
