CQM1-OC224
Product PDF:
CQM1-OC224 is
In Stock Ships Today!Contact us to place an order or request a quote:
1-800-479-8084 | sales@trwsupply.com
Rate the CQM1-OC224
5.0/5 on 2 reviews
Product Details
- CQM1 Output Control Module (CQM1OC224)
- Manufacturer: Omron
- Series: CQM1
Product Description

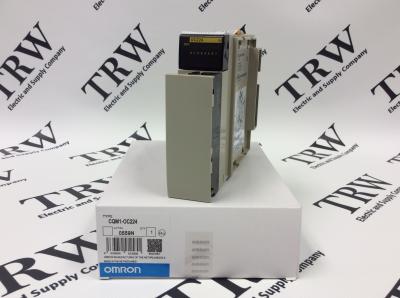

The Omron CQM1-OC224 (CQM1OC224) is a CQM1 series output control module with 8 points. This output control module has an internal consumption of 440mA at 5VDC. This control module has three maximum switching capacities depending on the variables used. When at (cosφ= 1) with a voltage is 250VAC the current is 2 Amp at (cosφ= 0.4) and a voltage of 250VAC, the current is correspondingly 2 Amp the last one is (16 Amp/unit) at a voltage of 24VDC and also has the current of 2 Amp. The CQM1-OC224 control module has a minimum switching capacity is 10mA at a voltage of 5VDC. When turning the module ON and OFF, there is at most a 15ms delay in turning the PLC ON a 5ms delay when turning it OFF.There are 18 screw terminals on the CQM1-OC224’s removable terminal block that are named A0-A8 and B0-B8. The control module has 8 points, each point is produced by two of the screw terminals like this e.g. A0 and B0, A1 and B1, all the way to A7 and B7. The last two terminals (A8 and B8) have no connections (NC). These points do not rely on a circuit but are independent commons.
The CQM1-OC224 control module depends on a CPU and a power supply in any Omron configuration it is in. The CPU must be a CQM1-CPU11-E, 21-E or a CQM1-CPU41-EV1, 42-EV1, 43-EV1 or 44-EV1. Concerning power supplies, the control module needed must be a CQM1-PA203, 206 or 216 or a CQM1-PD026. When attaching this CQM1-OC224 to a CPU or specialized input output control module, a connection must be made by the incorporated connectors on the side of the module. Then the connection can be secured by the sliders which are on top of the control module.
Here is the source material that may have been referenced:
https://www.farnell.com/datasheets/1699916.pdf
Technical Specifications
Part Number: CQM1-OC224 (CQM1OC224)Module Type: Output Control Module
Number of Output Points: 8
Weight: 0.6lbs (0.27kg)
