CQM1-OC221
Product PDF:
CQM1-OC221 is
In Stock Ships Today!Contact us to place an order or request a quote:
1-800-479-8084 | sales@trwsupply.com
Rate the CQM1-OC221
4.5/5 on 2 reviews
Product Details
- CQM1 Output Control Module (CQM1OC221)
- Manufacturer: Omron
- Series: CQM1
Product Description

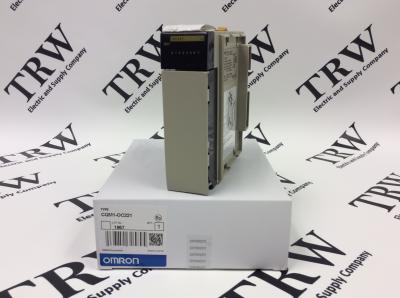

The Omron CQM1-OC221 (CQM1-OC221) is a CQM1 series output control module with 8 points. This control module has a maximum switching capacity, the current invariably remains at a stable 2 Amp, the voltage can either be 250VAC or 24VDC. While the minimum switching capacity of the control module has a voltage of 5VDC and a current of 10mA. Internal current consumption of the CQM1-OC221 is 430mA at 5VDC.The CQM1-OC221 control module can be fitted with up to 10 other modules plus the CPU and power supply depending on the CPU employed. If the CQM1-CPU11 or CQM1-CPU21-E is used, only another 6 units can be attached to the configurations. However any of the other optional CPUs permit another 10, i.e. the CQM1-CPU4()-E or the CQM1-CPU4()-EV1. The life span of the CQM1-OC221 in the configuration hinges on the how it operates, electrical or mechanical. In electrical operations, it can serve 300,000 operations in a restive load and 100,000 operations in an inductive load. With mechanical operations, it can serve 20,000,000 of them.
There are two types of input output control modules in the Omron CQM1 series, connector type and the terminal block type. This would denote that the contact control module has terminal block integrated in the module, unlike the CQM1-OC224 whose terminal block is pro-tube rating. This control module has 18 screw terminals with epithets of A0-A8 and B0-B8. A8 and B8 are NC (no connection) terminals. However the remainder of the terminals each participates in an output point which is built of a voltage output and a current output.
Here is the source material that may have been referenced:
https://www.farnell.com/datasheets/1699916.pdf
Technical Specifications
Part Number: CQM1-OC221 (CQM1OC221)Module Type: Output Control Module
Number of Output Points: 8
Weight: 0.45lbs (0.2kg)
Related Parts
CQM1-AD041 - CQM1 Analog Input Control Module (CQM1AD041)CQM1-CPU21 - CQM1 Control Module (CQM1CPU21)
CQM1-OC222 - CQM1 Output Control Module (CQM1OC222)
Shipping and Order Information
- TRW Supply can usually ship in stock items same day before 3:30 PM EST for no extra cost and before 5 PM with a rush fee
- Omron CQM1 Shipping options vary by location. Call for an accurate quote.
Warranty
- The Omron CQM1-OC221 comes with a two year warranty.
- A three year warranty is available. Please inquire for pricing.
