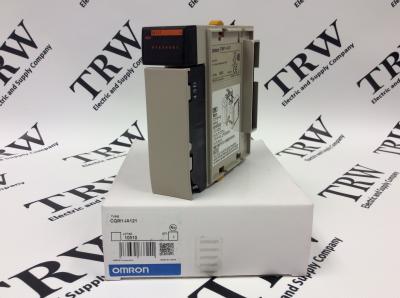

CQM1-IA121


Part Number - CQM1-IA121

Product PDF: pdf image

CQM1-IA121 is

In Stock Ships Today!


Contact us to place an order or request a quote:

1-800-479-8084 | sales@trwsupply.com



Rate the CQM1-IA121
4.5/5 on 4 reviews



Product Details

  • CQM1 Input Control Module IA 121 (CQM1IA121)
  • Manufacturer: Omron
  • Series: CQM1

Product Description

The Omron CQM1-IA212 (CQM1-IA212) is an AC input control module from the CQM1 series. The control module can connect to other PLC’s by the use of the connectors integrated in the module itself and then secured by sliders placed on the top and bottom. It then can be installed with the rest of the configuration on a DIN rack and bonded to the rack by a DIN track mounting pin. In the Omron configuration, the CQM1-IA212 input module needs to be connected in some way (maybe by multiple specialized I/O modules) to a CQM1 series CPU and a power supply.

The CQM1-IA212 control module has a removable terminal block which has 18 screw terminals that are given the names A0-A8 and B0-B8. The module itself has 8 input points for the circuit which are fed to 8 terminals, A0-A3 and B0-B3. Terminals A4-A7 and B4-B7 all have no connections (NC). The last two terminals, A8 and B8, are COM terminals.

The input voltage of the CQM1-IA212 control module spans from 100 to 120VAC fluctuating +10% and -15% with a frequency of 50/60Hz. Its input impedance is 20 kilo-ohms when it is at 50Hz and 17 kilo-ohms at 60Hz. The voltage requisite for the turning the turning ON and OFF of the CQM1-IA212 is 60VAC at minimum for turning ON and turning OFF is 20VAC max. The delay in turning ON is 35ms, while the delay turning off is a little longer at 55ms. The control module has a internal current consumption of 50mA at 5VDC.

Here is the source material that may have been referenced:
https://www.farnell.com/datasheets/1699916.pdf


Technical Specifications

Part Number: CQM1-IA212 (CQM1-IA212)
Module Type: Control Module
Number of Input Points: 8
Weight: 0.46lbs (0.21kg)


Related Parts

CQM1-AD041 - CQM1 Analog Input Control Module (CQM1AD041)
CQM1-CPU21 - CQM1 Control Module (CQM1CPU21)
CJ1M-CPU21 - Omron CJ1 Control Module (CJ1MCPU21)



Shipping and Order Information

  • TRW Supply can usually ship in stock items same day before 3:30 PM EST for no extra cost and before 5 PM with a rush fee
  • Omron CQM1 Shipping options vary by location. Call for an accurate quote.

Warranty

  • The Omron CQM1-IA121 comes with a two year warranty.
  • A three year warranty is available. Please inquire for pricing.
