CQM1-DA022
Product PDF:
CQM1-DA022 is
Available
Contact us to place an order or request a quote:
1-800-479-8084 | sales@trwsupply.com
Rate the CQM1-DA022
4.8/5 on 5 reviews
Product Details

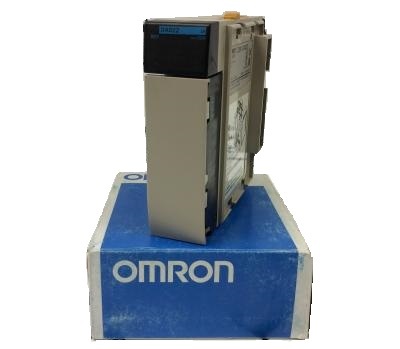

- CQM1 Input Output Control Module (CQM1DA022)
- Manufacturer: Omron
- Series: CQM1
Product Description
The Omron CQM1-DA022 (CQM1DA022) is an CQM1 series input output control module with just 2 points. This control module has a 2 point analog output. Specifications for the module include as the following delineates: an output range with a voltage spanning from -10 V to +10 V, the output ranges current itself varies from 0 mA to 20 mA; the load impedance for the voltage of the CQM1-DA022 is greater than 2 kilo-ohms and less than 350 ohms for the current; and the voltage’s resolution is 12 bits, the current’s, 11 bits. This analog module’s current consumption is 340 mA at 5 volts DC; the total output current is 50 mA.Regarding the accuracy of the CQM1-DA022 Control Module the precision will vary depending on the ambient temperature of the place in which the CQM1-DA022 is ensconced. For maximum accuracy, ambient temperatures should stay with 0 to 55 ° C. A green light will be let when the module it is functioning as it should.
The CQM1-DA022 I/O Control Module has eighteen terminals, eight of which have preordained functions. Terminals A1 and A3 (their names are I1+ and I2+) are utilized for positive current output, A2 and A4 (V1+ and V2+) for positive voltage output, B1 and B3 (I1- and I2-) for negative current output, and B2 and B4 (V1+ and V2+) for negative voltage output.
This module can be a part of Omron’s CQM1H series configuration. It is most appropriately connected to a CQM1H-CPU[] and a up to ten other modules and dedicated Input and Output Modules.
