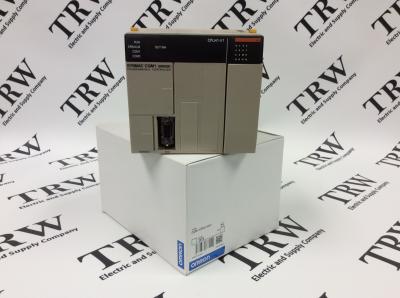

CQM1-CPU41-EV1


Part Number - CQM1-CPU41-EV1

Product PDF: pdf image

CQM1-CPU41-EV1 is


Available


Contact us to place an order or request a quote:

1-800-479-8084 | sales@trwsupply.com



Rate the CQM1-CPU41-EV1
5.0/5 on 2 reviews


Product Details

  • CQM1 Programmable Controller (CQM1CPU41EV1)
  • Manufacturer: Omron
  • Series: CQM1

Product Description

The Omron CQM1-CPU41-EV1 (CQM1CPU41-EV1) is a CPU module from the CQM1 series. The data memory capacity is 6,144 words and its program capacity is 7.2K words. There are seven different types of bits with a disparate number of bits for each type: 64 input and 64 output MACRO instruction bits, 32 high-speed counter 0 PV bits, 192 special bits, 8 temporary bits, 1,600 holding bits, 448auxiliary bits, and 1,024 link bits. This CQM1-CPU41-EV1 CPU has 256 points which is 12 words.

There are four external interrupt and three scheduled interrupts in the CQM1-CPU41-EV1 CPU module. One of the scheduled interrupts can be employed as a high-speed counter interrupt and another one as a pulse output. There are 512 timers/counters and there are 137 instructions of 14 basic types. Its execution time depends on whether the instruction is basic or special. Basic instruction takes within 0.50 to 1.50ms and the special instruction is 24ms.

The CQM1-CPU41-EV1 CPU module has two interfaces like many other CPUs: the peripheral and the RS-232C. The peripheral interface can connect to a CQM1-CIF02 cable and both interfaces an IBM PC/AT compatible personal computer. The peripheral port can also connect to a C200H-CN222 (2 meters) or C200H-CN422 (4 meters) cable. This cable than can connect with the CQM1-PRO01-E programming console. The RS-232C interface can connect with a host link, RS-232C link, and a 1 to 1 link. These links can connect to a PT, printer, barcode reader, or another CPU of the series the CQM1-CPU41-EV1 is from.

Here is the source material that may have been referenced:
http://www.edata.omron.com.au/eData/PLCs/CQM/W226-E1-7.pdf


Technical Specifications

Part Number: CQM1-CPU41-EV1 (CQM1CPU41-EV1)
Module Type: CPU Module
Number of I/O: 256pts.
Weight: l lb. (Approx.)



Shipping and Order Information

  • TRW Supply can usually ship in stock items same day before 3:30 PM EST for no extra cost and before 5 PM with a rush fee
  • Omron CQM1 Shipping options vary by location. Call for an accurate quote.

Warranty

  • The Omron CQM1-CPU41-EV1 comes with a two year warranty.
  • A three year warranty is available. Please inquire for pricing.
