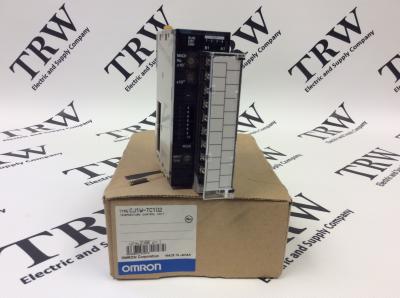

CJ1W-TC102
Product PDF:
CJ1W-TC102 is
In Stock Ships Today!In Stock Ships Today!Contact us to place an order or request a quote:
1-800-479-8084 | sales@trwsupply.com
Rate the CJ1W-TC102
5.0/5 on 1 review
Product Details
- CJ1 Temperature Control Module (CJ1WTC102)
- Manufacturer: Omron
- Series: CJ1
Product Description
The Omron CJ1W-TC102 (CJ1WTC102) is a CJ1 series temperature control module. This control module has a platinum resistance thermometer sensor with two set values. Value ‘0’ correspond with the input type Pt100 and the set value ‘1’ squares with the JPt100 input type. Set values between and including ‘2’ to ‘9’ are not to be set. Both of the two input types of the platinum resistance thermometer control the temperature within the range of -200.0 to 650.0 degrees Celsius (-300.0 to 1,200.0 degrees Fahrenheit).On the top of the CJ1W-TC102 temperature control module are three status indicators. The first indicator is a ‘RUN’ indicator which is a signified by its green light, (when lit) means that the control module is operating as normal. The next indicator is signified by the ‘ERC’, which is red when an error within the module itself has occurred. The last indicator, the ‘ERH’, is red when an error has happened in the CPU module. There is also a removable terminal block on the CJ1W-TC102 which has eighteen screw terminals. There are four input points that are fed to terminals A1-A6 and B1-B6. There are four output points which are generated from terminals A7-A8 and B7-B8. The B9 terminal is a 0V terminal. The last terminal, A9, is a 24V COM (+) terminal.
The CJ1W-TC102 temperature control module can only be applied to the CJ system. The CPU can be fitted to either the CPU rack or expansion module. It can participate with ten other modules in a CPU rack and ten other modules in the expansion backplane for every backplane used.
Here are the source material that may have been referenced:
https://www.ia.omron.com/data_pdf/cat/cj1w-tc_ds_csm1622.pdf?id=1438
Technical Specifications
Part Number: CJ1W-TC102 (CJ1WTC102)Module Type: Temperature Control Module
Number of Input Output Points: 8
Weight: 0.33lbs (0.15kg)
Related Parts
CJ1W-DA08V - CJ1W Control Module (CJ1WDA08V)CJ1W-ETN11 - CJ1W Control Module (CJ1WETN11)
CQM1-OC222 - CQM1 Output Control Module (CQM1OC222)
Shipping and Order Information
- TRW Supply can usually ship in stock items same day before 3:30 PM EST for no extra cost and before 5 PM with a rush fee
- Omron CJ1 Shipping options vary by location. Call for an accurate quote.
Warranty
- The Omron CJ1W-TC102 comes with a two year warranty.
- A three year warranty is available. Please inquire for pricing.
Additional Information
TRW Electric & Supply Company is a global automation supplier. We deliver reliable new and refurbished parts at a great value. Our product focus is Omron and Mitsubishi products, but we have been able to provide our customers with solutions from other manufacturers as well. Our goal is to supply the automation industry with the best service and pricing, and of course conduct business with a high level of integrity.
Authorized Distributors
A Omron Authorized Distributor for CJ1 is not the only source for Omron products. Many of the Omron products have been discontinued and therefore are no longer available from authorized suppliers. TRW Electric & Supply has many new and refurbished Omron CJ1 parts available for purchase.
