CJ1W-DA08V
Product PDF:
CJ1W-DA08V is
In Stock Ships Today!In Stock Ships Today!Contact us to place an order or request a quote:
1-800-479-8084 | sales@trwsupply.com
Rate the CJ1W-DA08V
5.0/5 on 1 review
Product Details
- CJ1 Output Control Module (CJ1WDA08V)
- Manufacturer: Omron
- Series: CJ1
Product Description

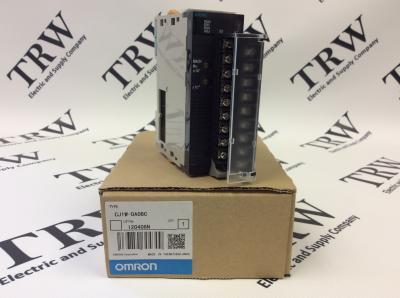

The Omron CJ1W-DA08V (CJ1WDA08V) is a CJ1 series output control module with 8 voltage points. This control module has an analog output power consumption of 140mA whether the voltage is 5V or 24V (note that the latter voltage is permitted to fluctuate +10%/-15%).The CJ1W-DA08V output control module defines that it is a voltage output because of the ‘V’ in the name. There are eight voltage output points in this control module that are released from the eighteen screw terminals from the detachable terminal block. The names are A1-A9 and B1-B9 with each output point needing two terminals, one positive and one negative. Terminals A1-A2 of the CJ1W-DA08V are used for output point 1; B1-B2 are deployed for output point 2; A3-A4 is output point 3, etc. A9 however produces 24V and B9 produce 0V. The output signal range is 1 to 5V, 0 to 5V, 0 to 10V, or -10 to 10V; the signal range may be set for each output. The maximum output current for a single point is 2.4mA.
Though the CJ1W-DA08V control module may be in an Omron configuration, it can still be mounted onto CPU rack, expansion rack, expansion backplane, or CP1H PLC. It is compatible with the racks and expansions from the NJ system, the CJ system, the CP1H system, and the NSJ system. The CJ1W-DA08V can be connected with nine units not counting the CPU or power supply, for every system besides the CP1H which can only support the analog control module and one other module. Most all the modules are fastened to a rack or expansion, control modules may also be connected to each other by the connector and sliders that are on the sides and top of the modules.
Here is the source material that may have been referenced:
https://assets.omron.eu/downloads/manual/en/v2/w345_cs1_cj1_analog_i_o_units_operation_manual_en.pdf
Technical Specifications
Part Number: CJ1W-DA08V (CJ1WDA08V)Module Type: Output Control Module
Number of Output Points: 8
1-5 V / 0-5 V / 0-10 V / -10-10 V
1:4000 RESOLUTION
12 BIT
SCREW I/O CONNECTION TYPE
Weight: 0.33lbs (0.15kg)
Related Parts
CJ1M-CPU12 - Omron CJ1 Programmable Control Module (CJ1MCPU12)CJ1M-CPU13 - Omron CJ1 Control Module (CJ1MCPU13)
CJ1M-CPU21 - Omron CJ1 Control Module (CJ1MCPU21)
Shipping and Order Information
- TRW Supply can usually ship in stock items same day before 3:30 PM EST for no extra cost and before 5 PM with a rush fee
- Omron CJ1 Shipping options vary by location. Call for an accurate quote.
Warranty
- The Omron CJ1W-DA08V comes with a two year warranty.
- A three year warranty is available. Please inquire for pricing.
Additional Information
TRW Electric & Supply Company is a global automation supplier. We deliver reliable new and refurbished parts at a great value. Our product focus is Omron and Mitsubishi products, but we have been able to provide our customers with solutions from other manufacturers as well. Our goal is to supply the automation industry with the best service and pricing, and of course conduct business with a high level of integrity.
Authorized Distributors
A Omron Authorized Distributor for CJ1 is not the only source for Omron products. Many of the Omron products have been discontinued and therefore are no longer available from authorized suppliers. TRW Electric & Supply has many new and refurbished Omron CJ1 parts available for purchase.
