CJ1W-DA041


Part Number - CJ1W-DA041

Product PDF: pdf image

CJ1W-DA041 is

In Stock Ships Today!


Contact us to place an order or request a quote:

1-800-479-8084 | sales@trwsupply.com



Rate the CJ1W-DA041
4.0/5 on 1 review



Product Details

  • CJ1 Output Control Module (CJ1WDA041)
  • Manufacturer: Omron
  • Series: CJ1

Product Description

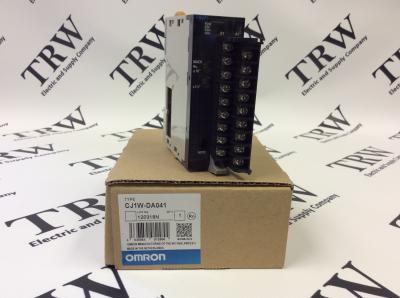

The Omron CJ1W-DA041 (CJ1WDA041) is a CJ1 series output control module with 4 points. This control module (when placed in the Omron configuration) is situated next to the analog input module and a CPU unit. It can be put on a CPU rack or an expansion rack in the NJ system, a CPU rack or expansion backplane from a CJ system, or a CP1H PLC from the CP1H system, or an expansion backplane from the NSJ system. The number of units that the CJ1W-DA041 analog module can be with is entirely conditional on the rack or backplane used but it can go from 2 to 10 units.

This is a CJ1W-DA041 output control module has four analog points. The terminal block and external connection is removable. The control module has eighteen screw terminals named A1-A9 and B1-B9. A1-A6 and B1-B6 all participate in the output points. Each output point has a voltage output (+), output (-), and a current output (+). Terminals B7-B8 and A7-A8 all have no connections (NC), B9 has a voltage of 0V and A9 has a voltage 24V.

The signal ranges for the voltage output of the point is 1 to 5V, 0 to 5V, 0 to 10V, -10 to 10V and the current output is 4 to 20mA. Its current consumption, which is dependent on the voltage, is 0.12 Amp when it is at 5VDC and 0.2 Amp when it is at 24VDC. The CJ1W-DA041 control module has a external power supply at 24VDC +10% and -15% with a current of 200mA with a 4,000 resolution.

Here is the source material that may have been referenced:
https://assets.omron.eu/downloads/manual/en/v2/w345_cs1_cj1_analog_i_o_units_operation_manual_en.pdf


Technical Specifications

Part Number: CJ1W-DA041 (CJ1WDA041)
Module Type: Control Module
Number of Analog Output Points: 4
Weight: 0.33lbs (0.15kg)


Related Parts

CJ1M-CPU12 - Omron CJ1 Programmable Control Module (CJ1MCPU12)
CJ1M-CPU13 - Omron CJ1 Control Module (CJ1MCPU13)
CQM1-OC222 - CQM1 Output Control Module (CQM1OC222)
R88D-WT20H - Omron R88D Servo Drive (R88DWT20H)



Shipping and Order Information

  • TRW Supply can usually ship in stock items same day before 3:30 PM EST for no extra cost and before 5 PM with a rush fee
  • Omron CJ1 Shipping options vary by location. Call for an accurate quote.

Warranty

  • The Omron CJ1W-DA041 comes with a two year warranty.
  • A three year warranty is available. Please inquire for pricing.
