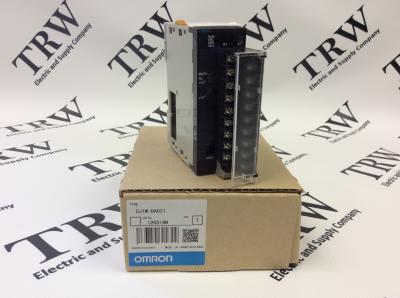

CJ1W-DA021
Product PDF:
CJ1W-DA021 is
In Stock Ships Today!In Stock Ships Today!Contact us to place an order or request a quote:
1-800-479-8084 | sales@trwsupply.com
Rate the CJ1W-DA021
Be the 1st to rate this product listing!
Product Details
- CJ1 Output Control Module (CJ1WDA021)
- Manufacturer: Omron
- Series: CJ1
Product Description
The Omron CJ1W-DA021 (CJ1WDA021) is a CJ1 series output control module. The control module has 18 screw terminals in the removable screw terminal block. The appellations of the terminals are A1-A9 and B1-B9, of these 18 terminals there are 2 output points. Each output point is made by three terminals, one as the voltage output (+), another output (-), and a current output (+). Only terminals A1-A3 and B1-B3 terminals participate as output points. Terminal A9 has a voltage 24V and terminal B9 has a voltage of 0V. The rest of the terminals of the CJ1W-DA021 have no connection (NC).The dimensions of the CJ1W-DA021 control module are, measuring by width, height and depth is 31mm by 90mm by 65mm (1.22in by 3.54in by 2.56in). The weight of the analog output control module is 0.33lbs (0.15kg).
The power consumption of the CJ1W-DA021 control module when the voltage is at 5VDC is 120mA and 140mA when the voltage is 24V. The external power supply is 24VDC +10% or -15%, but the inrush current must be below 20A. The analog output specifications for the terminals of the CJ1W-DA021 are as follows. Each output has signal ranges of 1 to 5V with a current between 4 to 20mA, 0 to 5V, 0 to 10V, and -10 to 10V. The output impedance (-) is 0.5 ohms. The analog output current (+) for the voltage output (+) is 12mA while the load resistance sanctioned is 600 ohms for the output current (+). The resolution of these outputs of the CJ1W-DA021 is 4,000.
Here is the source material that may have been referenced:
https://assets.omron.eu/downloads/manual/en/v2/w345_cs1_cj1_analog_i_o_units_operation_manual_en.pdf
Technical Specifications
Part Number: CJ1W-DA021 (CJ1WDA021)Module Type: Control Module
Number of Analog Output Points: 2
Weight: 0.33lbs (0.15kg)
Related Parts
CJ1G-CPU42H - Omron CJ1 Control Module (CJ1GCPU42H)CJ1W-B7A22 - Omron CJ1 BUS INTERFACE (CJ1WB7A22)
CJ1W-CIF11 - Omron CJ1 BUS CONVERTER (CJ1WCIF11)
Shipping and Order Information
- TRW Supply can usually ship in stock items same day before 3:30 PM EST for no extra cost and before 5 PM with a rush fee
- Omron CJ1 Shipping options vary by location. Call for an accurate quote.
Warranty
- The Omron CJ1W-DA021 comes with a two year warranty.
- A three year warranty is available. Please inquire for pricing.
