CJ1W-CLK23


Part Number - CJ1W-CLK23

Product PDF: pdf image

CJ1W-CLK23 is

In Stock Ships Today!


Contact us to place an order or request a quote:

1-800-479-8084 | sales@trwsupply.com



Rate the CJ1W-CLK23
4.0/5 on 3 reviews



Product Details

  • CJ1 Link Control Module (CJ1WCLK23)
  • Manufacturer: Omron
  • Series: CJ1

Product Description

The Omron CJ1W-CLK23 (CJ1WCLK23) is a CJ1 series link control module. This control module has a current consumption of 0.35 Amp when the voltage is 5VDC. The transmission distance of the CJ1W-CLK23 depends on the number of bits that are being transmitted. If 2M bits are imparted, the transmission distance is 500 meter, if 1M bits, then 800 meter and if 500k bits then 1 kilometers. With regards to the number of send words for each node, this link control module can send 4,000 words with up to 62 connectable nodes.

The CJ1W-CLK23 control module is compatible with a few different systems such as the CJ1 system, the CP1H system, and the NSJ system.

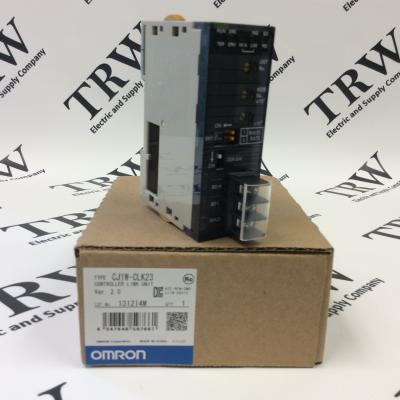

At the bottom of the CJ1W-CLK23 control module has a terminal block with three screw terminals. The three terminals are denoted by colors ‘BLACK’, ‘WHITE’, and none. The BLACK terminal us noted by the ‘BD H’ notation, signifying that this terminal has a high communication data. The WHITE terminal is given the ‘BD L’ notation that has low communication data. The last terminal is a shield terminal denoted with the ‘SHLD’ notation. Above this there are four different types of switches on the CJ1W-CLK23 Control Module. The first switch is a terminating resistance slide switch which turns on the terminating resistance. Then there is a 2-pin DIP switch which operates the baud rate. There are two node address switches which delegate the node address of the module. Finally, there is the unit number switch which deputizes the unit number of the switch.

Here is the source material that may have been referenced:
http://www.ia.omron.com/data_pdf/cat/cj1w-clk_ds_e_6_5_csm1611.pdf?id=1452


Technical Specifications

Part Number: CJ1W-CLK23 (CJ1WCLK23)
Module Type: Link Control Module
Number of Words: 4,000 words
Weight: 0.24lbs (0.11kg)
