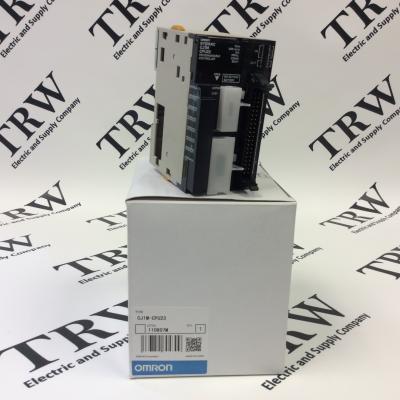

CJ1M-CPU23

Product PDF:

CJ1M-CPU23 is

In Stock Ships Today!

Contact us to place an order or request a quote:

1-800-479-8084 | sales@trwsupply.com

Rate the CJ1M-CPU23

4.0/5 on 2 reviews

Product Details

CJ1 Input Output Control Module (CJ1MCPU23)
Manufacturer: Omron
Series: CJ1

Product Description

The CJ1M-CPU23 Omron (CJ1MCPU23) is a input output control module from the CJ1 series. This module has a current consumption of 640mA when the voltage is at 5V. The program capacity of this control module is 20K steps. There is no extended memory (EM), so the data memory (DM) is commensurate with the data memory capacity which is 32K words. The input output capacity of the CJ1M-CPU23 is 640 points per 20 units. This CPU control module can only use one expansion rack.

The CJ1M-CPU23 has a built-in input output that has 40 pins. These pins can correspond with input and output points. There are 10 inputs and 2 counter inputs, and 6 outputs and 2 pulse outputs. There are also two ports and a large variety of connector cable applicable for this built-in input output control module. The RS-232C uses and conforms to an EIA RS-232C interface. This port has a variable baud rate that can span from 0.3 to 115.2kbps and a transmission distance of 15 meters. Protocols applicable are the host link, 1:N, NT link or peripheral bus or even no protocol. The peripheral port is deployed to connect with programming devices, but can transmuted to a peripheral port by using either a CS1W-CN118 or CS1W-CN[]26.

In a configuration, this CJ1M-CPU23 input output control module may connect with a power supply and other specialized input output modules. Connections are secured by connectors and sliders placed on the module. Then, the configuration may be consummated by the fitting on of the CJ1W-TER01 end covers on either side of the configuration.

Here are the source material that may have been referenced:
http://www.ia.omron.com/data_pdf/cat/cj1m-cpu_ds_e_6_2_csm1610.pdf?id=1638

Technical Specifications

Part Number: CJ1M-CPU23 (CJ1MCPU23)
Module Type: Output Control Module
Number of Input Output Points: 640
Weight: 1lb (approx.)

Related Parts

CJ1H-CPU66H - Omron CJ1 Control Module
CJ2M-CPU33 - Omron CJ2 Control Module
CJ2M-CPU32 - Omron CJ2 Control Module

Shipping and Order Information

TRW Supply can usually ship in stock items same day before 3:30 PM EST for no extra cost and before 5 PM with a rush fee
Omron CJ1 Shipping options vary by location. Call for an accurate quote.

Warranty

The Omron CJ1M-CPU23 comes with a two year warranty.
A three year warranty is available. Please inquire for pricing.
