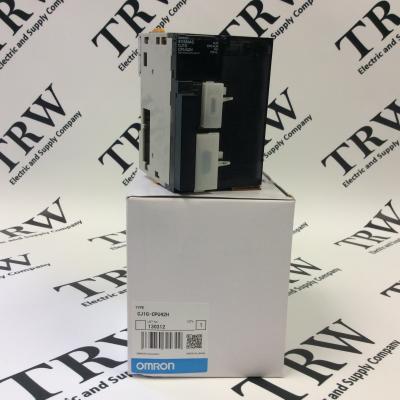

CJ1G-CPU42H


Part Number - CJ1G-CPU42H

Product PDF: pdf image

CJ1G-CPU42H is

In Stock Ships Today!In Stock Ships Today!


Contact us to place an order or request a quote:

1-800-479-8084 | sales@trwsupply.com



Rate the CJ1G-CPU42H
Be the 1st to rate this product listing!



Product Details

  • CJ1 Input Output Control Module (CJ1GCPU42H)
  • Manufacturer: Omron
  • Series: CJ1

Product Description

The Omron CJ1G-CPU42H (CJ1GCPU42H) is a CJ1 input output control module. This control module's program capacity is 10K steps while the data memory capacity is 64K words with the number of input output points at 960. The CJ1G-CPU42H has a memory card connector in which the memory card can be attached or disconnected by the pressing of the power supply switch. Above the memory card connector is an LED memory card indicator which lights when power is being supplied to the card and orange when the card is being retrieved. The DM (data memory) area of the CJ1G-CPU42H is 32K words and the words within the DM area retain their condition when the unit is off. The EM (extended memory) is 32K words per bank, with 7 banks at most.

The CJ1G-CPU42H input output control module can connect to other Omron modules via connectors integrated on the side of the module and sliders at the top of the module to secure connection. Serial communication modules can be linked by the Omron configuration and by mounting them on a DIN rail, allowing the CPU to connect or control to host computers, microcomputers, operator interface terminal, and other non Omron devices. This control module can be connected with up to 30 modules and 2 expansion racks. The CJ1G-CPU42H control module also has an RS-232C port, to connect to programming device other apart from the devices mentioned above. The input control module also has a peripheral port which connects to programming consoles or host computers.

Here is the source material referenced:
https://datasheet.octopart.com/CJ1GCPU42H-Omron-datasheet-11549389.pdf
http://www.omonr.com/pdfread/web/viewer.asp?ProductName=OMRON%20CJ1G-CPU44H%20INSTRUCTIONS%20REFERENCE%20MANUAL&brandid=1&Downloadid=10281
https://assets.omron.eu/downloads/manual/en/v1/w393_cj1m_g_h_cpu_units_operation_manual_en.pdf


Technical Specifications

Part Number: CJ1G-CPU42H (CJ1GCPU42H)
Module Type: Control Module
Number of Input Output Points: 960
Weight: 1lb (approx.)


Related Parts

CJ1G-CPU42HFB - Omron CJ1 Control Module (CJ1GCPU42HFB)
CJ1M-CPU13 - Omron CJ1 Control Module (CJ1MCPU13)
CJ1M-CPU21 - Omron CJ1 Control Module (CJ1MCPU21)



Shipping and Order Information

  • TRW Supply can usually ship in stock items same day before 3:30 PM EST for no extra cost and before 5 PM with a rush fee
  • Omron CJ1 Shipping options vary by location. Call for an accurate quote.

Warranty

  • The Omron CJ1G-CPU42H comes with a two year warranty.
  • A three year warranty is available. Please inquire for pricing.
