C200HS-CPU01-E
Product PDF:
C200HS-CPU01-E is
Available
Contact us to place an order or request a quote:
1-800-479-8084 | sales@trwsupply.com
Rate the C200HS-CPU01-E
5.0/5 on 2 reviews
Product Details
- C200H Output Control Module (C200HSCPU01E)
- Manufacturer: Omron
- Series: C200H
Product Description

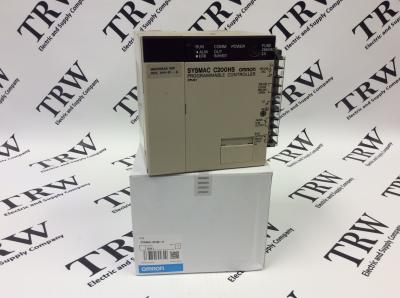

The Omron C200HS-CPU01-E (C200HSCPU01E) is a CPU C200H series output control module. The operating voltage range spans from 85 to 132VAC or 170 to 264VAC. The proper supply voltage orbits 100 to 120VAC or 200 to 240VAC. The power consumption is 100VA, the surge current, is 30A. The output capacity is, with a voltage at 5VDC, 3A.The C200HS-CPU01-E output control module can be placed on one of the four applicable backplanes. The backplanes that can be used are the C200H-BC031-V2, C200H-BC051-V2, C200H-BC081-V2, or C200H-BC101-V2. When the CPU is placed on the rack, an EPROM (C200HS-MP16K) or EEPROM (C200HS-ME16K) memory cassette can be placed into the C200HS-CPU01-E. There are many disparate modules may be placed into the available slots on the C200HS-CPU01-E’s CPU rack for instance: communication modules, interrupt input modules, special I/O modules, and I/O modules. The CPU control module might also connect with two expansion racks with a connecting cable such as the C200H-CN[][]1.
For the well-being of the C200HS-CPU01-E output control module, the environs which the CPU resides in must not have mordant gases or chemicals and substances that may cause harm to the module like dust. The temperature climate needs to remain between 32 and 131 degrees Fahrenheit (0 to 55 degrees Celsius) while operations are in function. In storage, the ambient temperature may increase to -4 to 149 degrees Fahrenheit (-20 to 65 degrees Celsius). The enclosure rating is IP30. The IP30 rating intimates that the C200HS-CPU01-E is protected from contravening objects of diameters greater than 2.5mm.
Here are the source material that may have been referenced:
https://www.limasoft.cz/omron/pdf/c200h_hs.pdf
https://www.enclosurecompany.com/ip-ratings-explained.php
Technical Specifications
Part Number: C200HS-CPU01-E (C200HSCPU01E)Module Type: Output Control Module
Voltage Frequency: 100 to 120VAC or 200 to 240VAC, 50/60Hz
Weight: 1lbs (Approx.)
Related Parts
C200H-BC081-V2 - Omron C200H Backplane 8 SlotsC200H-BC101-V2 - Omron C200H Backplane 10 Slots
CJ1M-CPU21 - Omron CJ1 Control Module (CJ1MCPU21)
Shipping and Order Information
- TRW Supply can usually ship in stock items same day before 3:30 PM EST for no extra cost and before 5 PM with a rush fee
- Omron C200H Shipping options vary by location. Call for an accurate quote.
Warranty
- The Omron C200HS-CPU01-E comes with a two year warranty.
- A three year warranty is available. Please inquire for pricing.
