C200HS-CPU01
Product PDF:
C200HS-CPU01 is
Available
Contact us to place an order or request a quote:
1-800-479-8084 | sales@trwsupply.com
Rate the C200HS-CPU01
Be the 1st to rate this product listing!
Product Details
- C200H Control Module (C200HSCPU01)
- Manufacturer: Omron
- Series: C200H
Product Description

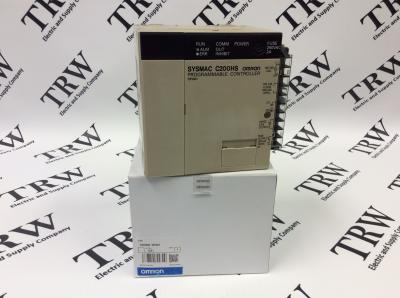

The Omron C200HS-CPU01 (C200HSCPU01) is a C200H series control module. The control module has a supply voltage of 100 to 120VAC or 200 to 240VAC with a frequency of 50/60Hz. The voltage can nevertheless span from 85 to 132VAC or 170 to 264VAC. The power consumption is 100VA and the surge current is 30VA. The control module has an output capacity of 300mA at a voltage of 5VDC.In a Omron configuration, the C200HS-CPU01 control module can be placed on a backplane C200H-BC0[]1-V2 that has 3-, 5-, 8-, or 10-slot. On the expansion backplane, many modules beside the CPU module can be placed with it. Module like the C200HS-SLK12/22 and C200HS-SNT32 communication module, link modules, interrupt input modules, special I/O modules, I/O modules, B7A interface module, etc. A C200HS-MP16K EPROM or C200HS-ME16K EEPROM memory cassette may be placed into the C200HS-CPU01 control module. This is connected to the expansion racks or slave racks by C200H-CN[][]1 connecting cable (for the expansion rack) or fiber-optic cable or twisted pair conductor (for the slave rack).
The enclosure rating of the C200HS-CPU01 control module is IP30. The IP rating signifies that the CPU control module is protected against the admittance of any product with a diameter of at least 2.5mm such as a wire or a type of tools. The ambient temperature that the control module needs to maintain is 32 to 131 degrees Fahrenheit (0 to 55 degrees Celsius) while the control module is operating. Even so, when in storage, the ambient temperature needs to be -4 to 149 degrees Fahrenheit (-20 to 65 degrees Celsius).
Here are the source material that may have been referenced:
https://www.limasoft.cz/omron/pdf/c200h_hs.pdf
Technical Specifications
Part Number: C200HS-CPU01 (C200HSCPU01)Module Type: Control Module
Voltage Frequency: 100 to 120VAC or 200 to 240VAC, 50/60Hz
Weight: 1lbs (Approx.)
Related Parts
C200H-CN422 - C200H Cable 9 metersC200H-BC101 - C200H Backplane (C200HBC101)
C200H-DAC01 - C200H Data Access Console (C200HDAC01)
Shipping and Order Information
- TRW Supply can usually ship in stock items same day before 3:30 PM EST for no extra cost and before 5 PM with a rush fee
- Omron C200H Shipping options vary by location. Call for an accurate quote.
Warranty
- The Omron C200HS-CPU01 comes with a two year warranty.
- A three year warranty is available. Please inquire for pricing.
