C200H-RT201
Product PDF:
C200H-RT201 is
Available
Contact us to place an order or request a quote:
1-800-479-8084 | sales@trwsupply.com
Rate the C200H-RT201
4.8/5 on 5 reviews
Product Details
- C200H Control Module with a SYSMAC BUS (C200HRT201)
- Manufacturer: Omron
- Series: C200H
Product Description

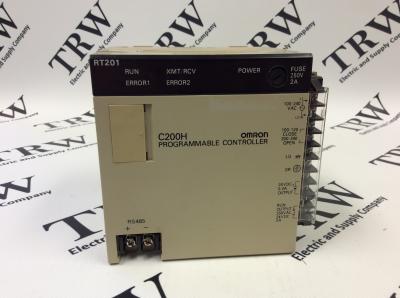

The Omron C200H-RT201 (C200HRT201) is a C200H series control module with a SYSMAC BUS which is designated a remote secondary unit. The control module has a power supply at 120VAC and the transmission media is a twisted pair cable that is utilized to connect with a master module.The C200H-RT201 must reside within a remote secondary rack using a wire cable to a master module that is within a configuration with a CPU or and expansion rack. There can be five slave racks for each rack containing a CPU. The expansion rack (backplane) that can be deployed must be either a 3-, 5-, 8-, or 10-slot C200H-BC0[]1-V2 backplane. Modules can then be attached to the secondary rack in which the C200H-RT201 control module is on can be special input output modules, B7A interface module or an analog timer module.
In the CPU configuration in which the C200H-RT201 control module can connect with needs to have a C200H-CPU[][]/-E module. Also, on that rack that holds the CPU configuration can bear two control modules that are responsible for appending the CPU to certain links, especially the SYSMAC Net and SYSMAC LINK. To place the modules on a backplane properly, since it is a secondary module, must be bolted in with two screws that are tightened by a Phillips screwdriver. When the racks are being mounted, they must be placed in a vertical direction. Though it is not necessary, a DIN track may be used to mount the configurations on. The mounting height should be either 118mm or 143mm.
Here is the source material that may have been referenced:
https://datasheet.ciiva.com/1157/c200h-1157203.pdf
Technical Specifications
Part Number: C200H-RT201 (C200HRT201)Module Type: Control Module with a SYSMAC BUS Remote Secondary
Voltage Frequency: 120VAC
Weight: 1lbs (Approx.)
Related Parts
R88D-WT50H - Omron R88D SERVO DRIVE (R88DWT50H)CJ1M-CPU21 - Omron CJ1 Control Module (CJ1MCPU21)
CQM1-OC222 - CQM1 Output Control Module (CQM1OC222)
Shipping and Order Information
- TRW Supply can usually ship in stock items same day before 3:30 PM EST for no extra cost and before 5 PM with a rush fee
- Omron C200H Shipping options vary by location. Call for an accurate quote.
Warranty
- The Omron C200H-RT201 comes with a two year warranty.
- A three year warranty is available. Please inquire for pricing.
