C200H-MC221
Product PDF:
C200H-MC221 is
Available
Contact us to place an order or request a quote:
1-800-479-8084 | sales@trwsupply.com
Rate the C200H-MC221
5.0/5 on 2 reviews
Product Details
- C200H Motion Control Module (C200HMC221)
- Manufacturer: Omron
- Series: C200H
Product Description

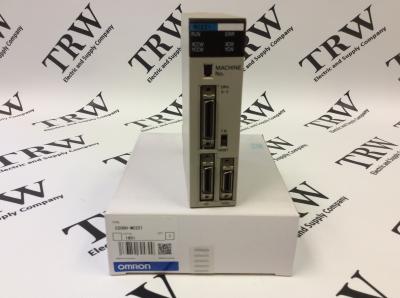

The Omron C200H-MC221 (C200HMC221) is a C200H series motion control module. To connect this control module to a personal computer, a RS-422 or RS-232C cable needs to be employed in that connection. The cable used must fulfill a couple of requirements, specifically the communication standard should be 9,600bps. A teaching box can be attached to the motion control module using the following cables: CV500-CN224, CV500-CN424, or CV500-CN624.On the C200H-MC221 there are six indicator lights. The ‘RUN’ light, when green signifies that the control module has made a successful connection with a personal computer; the ‘ERR’ light turns on red when the motion control has malfunction, then there is the ‘XCCW’ and ‘YCCW’ lights orange when the motor which this control module gyrates counterclockwise, the last two, ‘XCW’ and ‘YCW’, light orange when the motor the control module manages gyrates clockwise. Also, on the C200H-MC221 are three ports, the peripheral device, the 36-pin DRV X-Y and the 26-pin I/O connector. The input and output connectors can use a XW2Z-100J-F1 cable that can connect with a control module terminal.
The C200H-MC221 motion control module can be situated onto a backplane secured with a hook that is on the back of the motion controller and are locked in place with a locking device in the backplane. On the backplane, there must also be a power supply control module and a CPU module. Other slots which are part of the backplane that are not used by necessary modules are slots 3, 5, 8, and 10 which these slots can hold the control module.
Here is the source material that may have been referenced:
https://www.mouser.com/datasheet/2/307/M11W315E12699-4172.pdf
https://www.edata.omron.com.au/eData/PLCs/C200H_SIOU/W314-E3-1.pdf
Technical Specifications
Part Number: C200H-MC221 (C200HMC221)Module Type: Control Module
Motion Controller
Weight: 1lbs (Approx.)
Related Parts
C200H-APS01 - Omron C200H Power Supply AdapterCJ1M-CPU13 - Omron CJ1 Control Module (CJ1MCPU13)
CJ1M-CPU21 - Omron CJ1 Control Module (CJ1MCPU21)
Shipping and Order Information
- TRW Supply can usually ship in stock items same day before 3:30 PM EST for no extra cost and before 5 PM with a rush fee
- Omron C200H Shipping options vary by location. Call for an accurate quote.
Warranty
- The Omron C200H-MC221 comes with a two year warranty.
- A three year warranty is available. Please inquire for pricing.
Additional Information
TRW Electric & Supply Company is a global automation supplier. We deliver reliable new and refurbished parts at a great value. Our product focus is Omron and Mitsubishi products, but we have been able to provide our customers with solutions from other manufacturers as well. Our goal is to supply the automation industry with the best service and pricing, and of course conduct business with a high level of integrity.
Authorized Distributors
A Omron Authorized Distributor for C200H is not the only source for Omron products. Many of the Omron products have been discontinued and therefore are no longer available from authorized suppliers. TRW Electric & Supply has many new and refurbished Omron C200H parts available for purchase.
