C200H-DA003


Part Number - C200H-DA003

Product PDF: pdf image

C200H-DA003 is

In Stock Ships Today!


Contact us to place an order or request a quote:

1-800-479-8084 | sales@trwsupply.com



Rate the C200H-DA003
Be the 1st to rate this product listing!



Product Details

  • C200H Output Control Module (C200HDA003)
  • Manufacturer: Omron
  • Series: C200H

Product Description

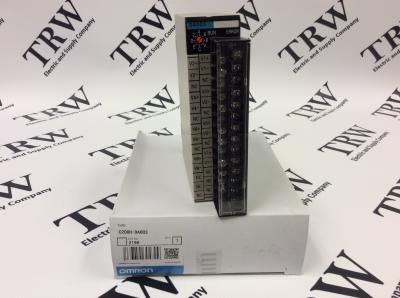

The Omron C200H-DA003 (C200HDA003) is a C200H series output control module with 8 points. The control module is 34.5mm by 130mm by 128mm (1.36in by 5.12in by 5.04in) if it demarcated by width by height by depth. In the basic configuration, the C200H-DA003 would be placed next to the its compeer Omron analog input control module, the C200H-AD003. The CPU utilized in this configuration can either be of the C200H, C200HS, and C200HX, HG, or HE series. This configuration will be able to handle up to 16 units depending on the CPU used.

The external output terminal block is attached to the C200H-DA003 control module by a connector and a terminal block mounting screw (black M3). This control module has 8 output points for its 28 terminals that are called B0-B13 and A0-A13. However B2, B5, B8, B11-13, A2, A5, A8, and A11-13 have no connection. The rest of the terminals are applied to the output points. Each voltage output point is fabricated from voltage (+) output and a voltage (-) output.

The output signal range, which can be set, can either span from 0 to 10V, -10 to 10V, or 1 to 5V. The output impedance of the C200H-DA003 output control module is 0.5Ω at maximum. The maximum output impedance is 12mA. The power consumption rate depends on the voltage rate. If it is at 5VDC the current is 100mA and when it is 26VDC the current 200mA. This C200H-DA003 allows for an extremely accurate analog output for PC systems of C200H, C200HS, and C200HX/HG/HE.

Here is the source material that may have been referenced:
https://www.lakewoodautomation.com/support/manuals/Omron/W325E104%20C200H-AD003%20DA003%20DA004%20MAD01%20Operation%20Manual.pdf


Technical Specifications

Part Number: C200H-DA003 (C200HDA003)
Module Type: Output Control Module
Number of Analog Output Points: 8
8 X 1-5V/0-10V/-10-+10V
Weight: 0.99lbs (0.45kg)


Related Parts

C200H-B7A01 - Omron Interface 16 Output Points (C200HB7A01)
C200H-BC051 - Omron Backplane 5 Slots (C200HBC051)
C200H-CPU02 - Omron Controller (C200HCPU02)



Shipping and Order Information

  • TRW Supply can usually ship in stock items same day before 3:30 PM EST for no extra cost and before 5 PM with a rush fee
  • Omron C200H Shipping options vary by location. Call for an accurate quote.

Warranty

  • The Omron C200H-DA003 comes with a two year warranty.
  • A three year warranty is available. Please inquire for pricing.


Additional Information
