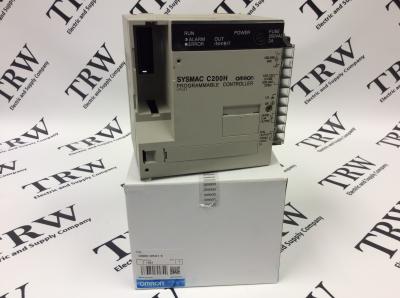

C200H-CPU21-E


Part Number - C200H-CPU21-E

Product PDF: pdf image

C200H-CPU21-E is


Available


Contact us to place an order or request a quote:

1-800-479-8084 | sales@trwsupply.com



Rate the C200H-CPU21-E
Be the 1st to rate this product listing!


Product Details

  • C200H Control Module with Power Supply (C200HCPU21E)
  • Manufacturer: Omron
  • Series: C200H

Product Description

The Omron C200H-CPU21-E (C200HCPU21-E) is a C200H series control module with a power supply. The control module with a voltage generally ranging from 100-120VAC or 200-240VAC but is permitted to function between voltages of 85-132VAC or 170-264VAC. The frequency of the C200H-CPU21-E control module is 50/60Hz with a power consumption of 120VA. The output depends on a voltage of 5VDC, but for the CPU rack, the current is 4.6 Amp and the expansion rack, 3 Amp.

The C200H-CPU21-E control module with power supply may be placed on a backplane. Concerning the CPU rack, the control module can be placed next to a series of input output modules because this module already has a power supply. On the expansion rack, since this control module is not on it, it requires a power supply and other input output units, and it must be united with the CPU rack.

The C200H-CPU21-E control module with power supply has multiple exterior features such as four ports. These ports mostly connect to the programming console. One of the ports connects to a handheld one, another connects to normal programming console, the third connects to a programming console for storage and one for the memory module. The C200H-CPU21-E control module also has a power fuse whose specifications are mentioned in the prior paragraph. On the right, there is a terminal block. There are many indicators: the RUN, POWER, OUT INHIBIT, ERROR, and ALARM. The RUN and POWER have green lights; the ALARM has a red light, but this light will scintillate; and the last two indicators have red lights.

Here are the source material that may have been referenced:
https://www.mouser.com/datasheet/2/307/M11W111E1100406-16913.pdf
https://www.limasoft.cz/omron/pdf/c200h_hs.pdf


Technical Specifications

Part Number: C200H-CPU21-E (C200HCPU21E)
Module Type: Control Module
Built-in Power Supply
Voltage/Frequency: 100-120 or 200-240VAC, 50/60Hz
Weight: 13.27lbs (6.0kg)


Related Parts

R88D-WT50H - Omron R88D SERVO DRIVE (R88DWT50H)
CJ1M-CPU13 - Omron CJ1 Control Module (CJ1MCPU13)
CJ1M-CPU21 - Omron CJ1 Control Module (CJ1MCPU21)



Shipping and Order Information

  • TRW Supply can usually ship in stock items same day before 3:30 PM EST for no extra cost and before 5 PM with a rush fee
  • Omron C200H Shipping options vary by location. Call for an accurate quote.

Warranty

  • The Omron C200H-CPU21-E comes with a two year warranty.
  • A three year warranty is available. Please inquire for pricing.
