C200H-AD003
C200H-AD003 is
In Stock Ships Today!Contact us to place an order or request a quote:
1-800-479-8084 | sales@trwsupply.comProduct Details
- C200H Input Control Module (C200HAD003)
- Manufacturer: Omron
- Series: C200H
Product Description

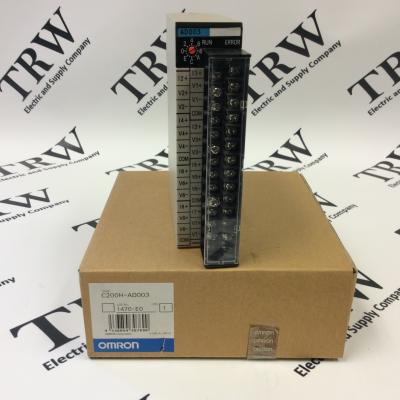

The Omron C200H-AD003 (C200HAD003) is a C200H series input control module with 8 analog points. The control module has dimensions of (measuring by height and depth) 34.5mm by 130mm by 128mm (1.36in by 5.12in by 5.04in). The weight of this module is 0.99lbs (0.45kg).The external input terminal block is fastened to the C200H-AD003 control module by mounting screw (black M3). This terminal block has 28 terminals with appellations of A0-A13 and B0-B13. With these 28 terminals there are 8 analog input points. Each input is constructed of a current (+) input, a voltage (+) input, and a voltage (-) input. Of the 8 points, point 3 and 6 are current inputs while all the other points are voltage inputs. However there are four terminals (A3, B6, A10, and B13) which are COM terminals which have analog voltage of 0V. Apart from this, there is a unit number switch on the C200H-AD003 whose settings are 0-9 and A-F. These different settings determine the number of IR and DM words.
The specifications for the C200H-AD003 control module differ in inputs depending on whether it is a voltage or current input. The analog input signal range can be 0 to 10V, -10 to 10V, or 1 to 5V with a maximum of ± 15V. The input impedance is 1MΩ min. Now, for the current input, the input signal range is 4 to 20mA with a maximum of ± 30mA. And the currents input impedance is 250Ω. The power consumption for the C200H-AD003 is 100mA at 5VDC and likewise 100mA at 26VDC.
Here is the source material that may have been referenced:
https://www.lakewoodautomation.com/support/manuals/Omron/W325E104%20C200H-AD003%20DA003%20DA004%20MAD01%20Operation%20Manual.pdf
Technical Specifications
Part Number: C200H-AD003 (C200HAD003)Module Type: Input Control Module
Number of Analog Input points: 8
Weight: 0.99lbs (0.45kg)
Related Parts
CJ1M-CPU12 - Omron CJ1 Programmable Control Module (CJ1MCPU12)CQM1-CPU21 - CQM1 Control Module (CQM1CPU21)
CQM1-OC222 - CQM1 Output Control Module (CQM1OC222)
Shipping and Order Information
- TRW Supply can usually ship in stock items same day before 3:30 PM EST for no extra cost and before 5 PM with a rush fee
- Omron C200H Shipping options vary by location. Call for an accurate quote.
Warranty
- The Omron C200H-AD003 comes with a two year warranty.
- A three year warranty is available. Please inquire for pricing.
TRW Electric & Supply Company is a global automation supplier. We deliver reliable new and refurbished parts at a great value. Our product focus is Omron and Mitsubishi products, but we have been able to provide our customers with solutions from other manufacturers as well. Our goal is to supply the automation industry with the best service and pricing, and of course conduct business with a high level of integrity.
A Omron Authorized Distributor for C200H is not the only source for Omron products. Many of the Omron products have been discontinued and therefore are no longer available from authorized suppliers. TRW Electric & Supply has many new and refurbished Omron C200H parts available for purchase.
