C200H-AD001
Product PDF:
C200H-AD001 is
In Stock Ships Today!Contact us to place an order or request a quote:
1-800-479-8084 | sales@trwsupply.com
Rate the C200H-AD001
5.0/5 on 3 reviews
Product Details
- C200H Input Control Module (C200HAD001)
- Manufacturer: Omron
- Series: C200H
Product Description

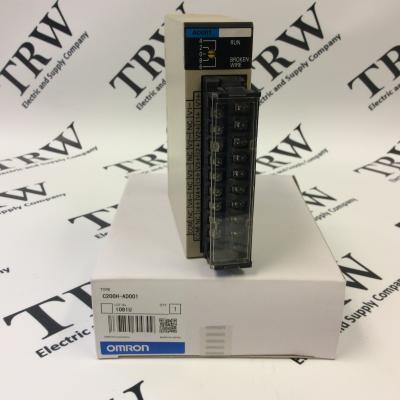

The Omron C200H-AD001 (C200HAD001) is a C200H series control module with 4 input points. The control module transforms the output of an analog field mechanism to digital form so that a personal computer can read the information. The input control module needs to be placed in an Omron configuration. It is most properly placed next to the its counterpart, the C200H-DA001 module. The configuration needs to use a C200HS, C200H, C200HG, C200HX, or C200HE series CPU.In this basic configuration, the C200H-AD001 control module sometimes may be used as an interface for other apparatuses. This will work as long as the voltage and current it is interfacing is within the designated range.
On the back end of the C200H-AD001 control module there is a backplane connector to allow the unit to connect to an expansion rack. Also on the back is a DIP switch that can set the unit’s functions. On the front there is a unit number setting switch and voltage/current input screws terminals. There are thirteen screw terminals which are divided into four input points, each point has a positive voltage input and current input and a negative input terminal. Besides these, input points of the C200H-AD001, there is a common terminal that has analog voltage of 0V. The four inputs lead to the integrated multiplexer which leads all the way to the aforementioned backplane connector.
The four inputs of the C200H-AD001 control module have input signal ranges between 1 to 5V except for input 3, whose range is 4 to 20mA.
Here are the source material that may have been referenced:
https://www.lakewoodautomation.com/support/manuals/Omron/W127E14%20C200H-AD001%20DA001%20Operation%20Guide.pdf
Technical Specifications
Part Number: C200H-AD001Module Type: Control Module
Number of Analog Input Points: 4
Weight: 1lb (Approx.)
Related Parts
C200H-AD002 - Omron C200H Control Module (C200HAD002)R88D-WT50H - Omron R88D SERVO DRIVE (R88DWT50H)
CJ1M-CPU21 - Omron CJ1 Control Module (CJ1MCPU21)
Shipping and Order Information
- TRW Supply can usually ship in stock items same day before 3:30 PM EST for no extra cost and before 5 PM with a rush fee
- Omron C200H Shipping options vary by location. Call for an accurate quote.
Warranty
- The Omron C200H-AD001 comes with a two year warranty.
- A three year warranty is available. Please inquire for pricing.
Additional Information
TRW Electric & Supply Company is a global automation supplier. We deliver reliable new and refurbished parts at a great value. Our product focus is Omron and Mitsubishi products, but we have been able to provide our customers with solutions from other manufacturers as well. Our goal is to supply the automation industry with the best service and pricing, and of course conduct business with a high level of integrity.
Authorized Distributors
A Omron Authorized Distributor for C200H is not the only source for Omron products. Many of the Omron products have been discontinued and therefore are no longer available from authorized suppliers. TRW Electric & Supply has many new and refurbished Omron C200H parts available for purchase.
