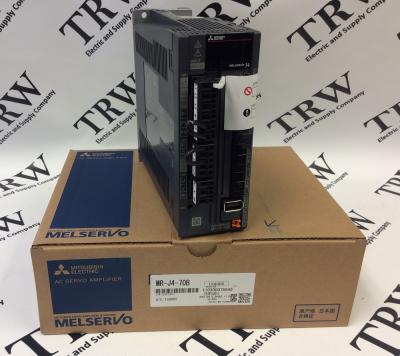

MR-J4-70B
MR-J4-70B is
In Stock Ships Today!In Stock Ships Today!Contact us to place an order or request a quote:
1-800-479-8084 | sales@trwsupply.comProduct Details
- Melservo MR-J4 Servo Amplifier with SSC Network (MRJ470B)
- Manufacturer: Mitsubishi
- Series: MELSERVO MR-J4
Product Description
The Mitsubishi MR-J4-70B (MRJ470B) is a 700W Melservo MR-J4 series servo amplifier with SSC Network. This servo amplifier may connect to many motors from the rotary servo, linear servo, and the direct drive motors. It may attach to either four different rotary motors, five linear motors, or one of the three direct drives.The servo motors can connect to the MR-J4-70B by two connections made by the encoder cable and the motor power cable. The power cable can be connected to the junction terminal block while the encoder cable can be joined to the CN2 port. Other peripheral connections that the MR-J4-70B servo amplifier may make with its ports are as follows. The CN5 port can connect to a personal computer by the use of a USB cable (MR-J3USBCBL3M) for parameter setting and monitoring. Another connection is with the Servo System Control Network (SSCNET) III-H system. This is made by SSC Network III-H connectors attaching to the CN1B and the CN1A interfaces. This connection allows the MR-J4-70B servo amplifier to connect to the servo system control modules that are adaptable to the SSCNET III-H.
The MR-J4-70B servo amplifier with SSC Network has a main circuit power supply voltage that spans from the 3-phase or 1-phase 200 to 240VAC, the frequency of 50/60Hz. The rated current of the MR-J4-70B servo amplifier is 3.8 Amp. The MR-J4-70B has consistent 3-phase or 1-phase voltage can fluctuate between 170 to 264VAC. The frequency also fluctuates with a permissible ±5% maximum. The output voltage conversely is also a 3-phase voltage of 170VAC and the current was 5.8 Amp with the output wattage of 700W.
Here is the manual referenced:
http://www.atronika.com/Mitsubishi/SERVO/MITSUBISHI_catalog_servo_j4.pdf
Technical Specifications
Part Number: MR-J4-70B (MRJ470B)Module Type: Servo Amplifier with SSC Network
Servo System Control Network (SSCNET)
Voltage/Frequency: 200 to 240VAC, 3- or 1-phase 50/60Hz
Output Wattage: 700W
Weight: 3.09lbs (1.4kg)
Related Parts
MR-J3-100A - Mitsubishi Melservo Servo AmplifierMR-J3-200B - Mitsubishi Melservo Servo Amplifier
HF-KP43B - Mitsubishi HF Series Servo Motor with Brake (HFKP43B)
Shipping and Order Information
- TRW Supply can usually ship in stock items same day before 3:30 PM EST for no extra cost and before 5 PM with a rush fee
- Mitsubishi MELSERVO MR-J4 Shipping options vary by location. Call for an accurate quote.
Warranty
- The Mitsubishi MR-J4-70B comes with a two year warranty.
- A three year warranty is available. Please inquire for pricing.
