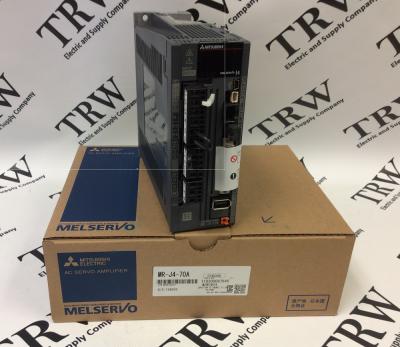

MR-J4-70A


Part Number - MR-J4-70A

MR-J4-70A is

In Stock Ships Today!


Contact us to place an order or request a quote:

1-800-479-8084 | sales@trwsupply.com



Rate the MR-J4-70A
1.0/5 on 2 reviews



Product Details

  • Melservo MR-J4 Servo Amplifier 750W 200V (MRJ470A)
  • Manufacturer: Mitsubishi
  • Series: MELSERVO MR-J4

Product Description

The Mitsubishi MR-J4-70A (MRJ470A) is a Melservo MR-J4 servo amplifier with an output wattage of 750W. The servo amplifier has an output rated current of 5.8A and a rated voltage of 170VAC that has 3-phases. The main circuit and control circuit are both power supply inputs. Both power supplies have voltages of 200 to 240VAC with frequencies of 50/60Hz and likewise both run on 1-phase, but the main circuit input can also run on 3-phase.

There are twelve servo motors that are able to cooperate with the MR-J4-70A servo amplifier. Four rotary servo motors may be implemented to the servo amplifier; five different linear servo motors from the LM-H3, LM-K2, and LM-U2; and three different direct drive motors.

The MR-J4-70A servo amplifier has multiple ports; items that may be applied to the servo amplifier by connecting to the port. The CN5 port can concatenate with a personal computer by the MR Configurator2 using this specific USB cable, the MR-J3USBCBL3M. The CN3 port can connect to a GOT touchscreen display by a RS-422 communication. Then, the CN8 port connects to a safety logic module. The MR-J4-70A servo amplifier may connect to Mitsubishi control modules by linking these modules to the junction terminal block. Control modules that can be exploited are from the FX3 series, Q series, and the FX2N-_PG. The servo motors that can be tethered to the MR-J4-70A servo amplifier by an encoder cable (which would attach to the CN2 port) and a servo motor power cable (which can connect to the U, V, W).

Here is the manual referenced:
http://www.atronika.com/Mitsubishi/SERVO/MITSUBISHI_catalog_servo_j4.pdf


Technical Specifications

Part Number: MR-J4-70A (MRJ470A)
Module Type: Servo Amplifier
Voltage/Frequency: 200 to 240VAC, 3- or 1-phase 50/60Hz
Output Wattage: 750W
Weight: 3.09lbs (1.4kg)


Related Parts

MR-JE-40A - Mitsubishi MR-JE Servo Amplifier
MR-JE-350C - Mitsubishi MR-JE Servo Amplifier
HG-JR534K - Mitsubishi HG Servo Motor with Key



Shipping and Order Information

  • TRW Supply can usually ship in stock items same day before 3:30 PM EST for no extra cost and before 5 PM with a rush fee
  • Mitsubishi MELSERVO MR-J4 Shipping options vary by location. Call for an accurate quote.

Warranty

  • The Mitsubishi MR-J4-70A comes with a two year warranty.
  • A three year warranty is available. Please inquire for pricing.
