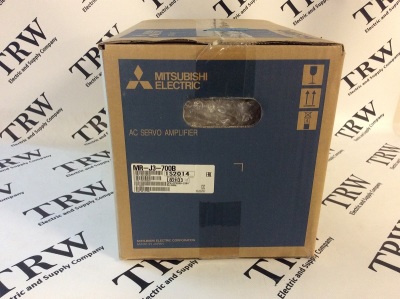

MR-J3-700B


Part Number - MR-J3-700B

MR-J3-700B is

In Stock Ships Today!


Contact us to place an order or request a quote:

1-800-479-8084 | sales@trwsupply.com



Rate the MR-J3-700B
Be the 1st to rate this product listing!



Product Details

  • Melservo MR-J3 Servo Amplifier with SSC NETWORK (MRJ3700B)
  • Manufacturer: Mitsubishi
  • Series: MELSERVO MR-J3

Product Description

The Mitsubishi MR-J3-700B (MRJ3700B) is a 7kW, 200V MELSERVO MR-J3 servo amplifier SSC NETWORK. The voltage operates on 3-phases, while the voltage range is 200 to 230VAC, and a frequency of 50/60Hz. The authorized voltage range is nevertheless 170 to 253VAC and the sanctioned frequency range is -5% to +5%. The MR-J3-700B servo amplifier also utilizes the SSCNET system that has a speed of 50Mbps.

The HC-SP702 servo motor is the only servo motor that may connect with the MR-J3-700B servo amplifier. The ways in which this servo motor may link with the servo amplifier is delineated below.

The MR-J3-700B servo amplifier has multiple ports and connectors. The CN5 port of this servo amplifier connects using a MR-J3USBCBL3M cable to a personal computer that employs a MR Configurator. The personal computer may also attach to a Q series configuration. Then the CN3 port can attach to an I/O signal. The MR-J3-700B servo amplifier has a CN1A port may attach to a motion control module from the Q series configuration with a SSCNET III. The CN1A port may also, using the SSCNET III, connect to the CN1B port of a similar servo amplifier and vice-versa. Below these ports is also a CN2 port that attaches to the encoder if the HC-SP702 servo motor. Concerning the connectors of the MR-J3-700B servo amplifier, the CNP3 (U, V, W) connector may link to the servo motor as its power supply. The other two connectors, the CNP2 and CNP3 connector are then used as both power supplies, the main and control circuit.

Here is the manual referenced:
http://www.koningenhartman.nl/UserFiles/Product/Brochure/MELSERVO%20MR%20family%20Technical%20Catalogue.pdf


Technical Specifications

Part Number: MR-J3-700B (MRJ3700B)
Module Type: Servo Amplifier
Servo System Control Network (SSCNET)
Voltage/Frequency: 200 to 230VAC, 3-phase 50/60Hz
Output Wattage: 7kW
Weight: 13.67lbs (6.2kg)


Related Parts

MR-J2-70A - Mitsubishi Servo Amplifier
MR-J2-70C - Mitsubishi Melservo Servo Amplifier
A0J2HCPU - Mitsubishi A Series CPUs A0J2 Controller



Shipping and Order Information

  • TRW Supply can usually ship in stock items same day before 3:30 PM EST for no extra cost and before 5 PM with a rush fee
  • Mitsubishi MELSERVO MR-J3 Shipping options vary by location. Call for an accurate quote.

Warranty

  • The Mitsubishi MR-J3-700B comes with a two year warranty.
  • A three year warranty is available. Please inquire for pricing.
