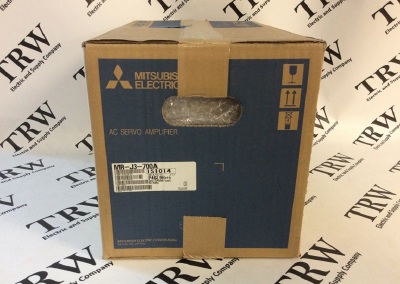

MR-J3-700A


Part Number - MR-J3-700A

MR-J3-700A is

In Stock Ships Today!


Contact us to place an order or request a quote:

1-800-479-8084 | sales@trwsupply.com



Rate the MR-J3-700A
Be the 1st to rate this product listing!



Product Details

  • MELSERVO MR-J3 Servo Amplifier 7KW 200V (MRJ3700A)
  • Manufacturer: Mitsubishi
  • Series: MELSERVO MR-J3

Product Description

The Mitsubishi MR-J3-700A (MRJ3700A) is a 7kW, 200V MELSERVO MR-J3 servo amplifier. The voltage of the servo amplifier spans from 200 to 230VAC while operating on 3-phases and the frequency is 50/60Hz. The voltage is allowed to orbit between 170 to 253VAC while retaining the 3-phases. The frequency of the MR-J3-700A servo amplifier is sanctioned to span from -5% to +5%.

The HF-SP702 servo motor is the only in which the MR-J3-700A servo amplifier may link with. It may link to the servo amplifier by a couple of ways in which will be shown below.

The MR-J3-700A servo amplifier has sundry ports and connectors. The first connector, the CN1 port, may attach to positioning control module, a terminal block, or port of a control module from the family of FX series. Then the CN3 port directly above the CN1 port, utilizing the RS-232 communication, may attach to a touchscreen panel from the Mitsubishi GOT series. The MR-J3-700A servo motor may also connect to a personal computer with a USB cable to the CN5 port. The servo motor, the HF-SP702, may attach, using the encoder, to the CN2 port of the MR-J3-700A servo amplifier. It also may attach to the servo amplifier by the ‘U, V, W’ connector. The other two connector, connect to the power supply. One may also utilize an optional FR-BEL reactor. Finally, the last port of the MR-J3-700A servo amplifier may link to the output of an analog signal. Above the ports and connectors is a display panel.

Here is the manual referenced:
http://www.koningenhartman.nl/UserFiles/Product/Brochure/MELSERVO%20MR%20family%20Technical%20Catalogue.pdf


Technical Specifications

Part Number: MR-J3-700A (MRJ3700A)
Module Type: Servo Amplifier
Voltage/Frequency: 200 to 230VAC, 3-phase 50/60Hz
Output Wattage: 7kW
Weight: 13.67lbs (6.2kg)



Shipping and Order Information

  • TRW Supply can usually ship in stock items same day before 3:30 PM EST for no extra cost and before 5 PM with a rush fee
  • Mitsubishi MELSERVO MR-J3 Shipping options vary by location. Call for an accurate quote.

Warranty

  • The Mitsubishi MR-J3-700A comes with a two year warranty.
  • A three year warranty is available. Please inquire for pricing.
