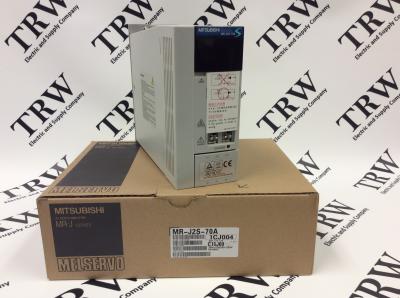

MR-J2S-70A
MR-J2S-70A is
In Stock Ships Today!Contact us to place an order or request a quote:
1-800-479-8084 | sales@trwsupply.comProduct Details
- Melservo MR-J2 Servo Amplifier 700W (MRJ2S70A)
- Manufacturer: Mitsubishi
- Series: MELSERVO MR-J2
Product Description
The Mitsubishi MR-J2S-70A (MRJ2S70A) is a Melservo MR-J2 series servo amplifier that generates an output wattage of 700W. This servo amplifier is the first of the power supplies and the control circuit. The voltage is a 1-phase voltage which has a voltage orbiting within 200 to 230VAC and a frequency of 50/60Hz the servo amplifier is allowed to waver between 170 to 253VAC. The main circuit has the same voltage and frequency with the exception that the voltage is 3-phase and is given a supplemental 1-phase voltage with a voltage of 230VAC.The MR-J2S-70A servo amplifier may configure to the following motors (that may connect to the amplifier as described below): HC-KFS73(B), HC-KFS46, HC-KFS410, HC-MFS73(B), HC-UFS72(B), and HC-UFS73(B).
On the MR-J2S-70A servo amplifier has six screw terminals and four ports. The top three screw terminals are entitled ‘L1, L2, L3’. These terminals may connect to the magnetic contractor which could then link to a circuit breaker. The bottom three screw terminals named ‘U, V, W’ connect to a motor of the series that is suitable for the MR-J2S-70A servo amplifier. The encoder of the servo motor can than connect to a CN2 port. Then the CN3 port can link to a personal computer that has a MR Configurator that is of the RS-232C. The last two ports, the CN1A and the CN1B, are able to connect to a terminal block, allowing each to link to the applicable modules. The CN1B port of the MR-J2S-70A servo amplifier can attach to a control signal, the CN1A can link to a positioning control module.
Here are the source material that may have been referenced:
http://dl.mitsubishielectric.com/dl/fa/document/catalog/servo/l03007/l03007d.pdf
http://www.andreoniautomazione.it/mr-j2-super-catalogue_gb.pdf
Technical Specifications
Part Number: MR-J2S-70A (MRJ2S70A)Module Type: Servo Amplifier 700W
Voltage/Frequency: 200 to 230VAC 50/60Hz, 3-phase
or 230VAC 50/60Hz, 1-phase
Output Wattage: 700W
Weight: 3.7lbs (1.7kg)
Related Parts
MR-J2S-70B - Mitsubishi Melservo MR-J2 Servo AmplifierHC-MFS73 - Mitsubishi Melservo HC Servo Motor
HC-MFS73B - Mitsubishi Melservo HC Servo Motor with Brake
Shipping and Order Information
- TRW Supply can usually ship in stock items same day before 3:30 PM EST for no extra cost and before 5 PM with a rush fee
- Mitsubishi MELSERVO MR-J2 Shipping options vary by location. Call for an accurate quote.
Warranty
- The Mitsubishi MR-J2S-70A comes with a two year warranty.
- A three year warranty is available. Please inquire for pricing.
