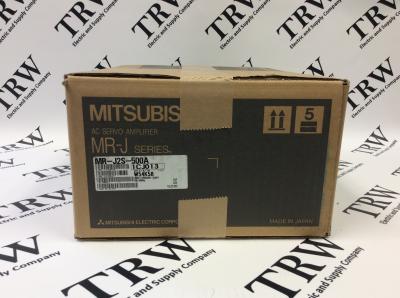

MR-J2S-500A


Part Number - MR-J2S-500A

MR-J2S-500A is

In Stock Ships Today!


Contact us to place an order or request a quote:

1-800-479-8084 | sales@trwsupply.com



Rate the MR-J2S-500A
Be the 1st to rate this product listing!



Product Details

  • Melservo MR-J2 Servo Amplifier 5000W 200V (MRJ2S500A)
  • Manufacturer: Mitsubishi
  • Series: MELSERVO MR-J2

Product Description

The Mitsubishi MR-J2S-500A (MRJ2S500A) is a 5000W, 200V Melservo MR-J2 servo amplifier (MRJ2S500A). The two power supply inputs, the main circuit and the control circuit. The main circuit is a 3-phase and the control circuit is a 1-phase; both power supplies have like voltages and frequencies of 200 to 230VAC, but the fluctuation can oscillate between 170 to 253VAC. For the frequency, the allowable fluctuation can be ±5%. The power consumption for the control circuit is 50W.

The MR-J2S-500A servo amplifier must remain indoors or in a place that circumvents the sunlight interactions. The clime of the servo amplifier needs to stay between temperature of 32 to 131 degrees Fahrenheit or while in storage -4 to 149 degrees Celsius.

There are four ports in the MR-J2S-500A servo amplifier. Two of the ports, the CN1A and CN1B, may be optionally be utilized as a terminal block. Notwithstanding, the CN1A can also connect to a variety of Mitsubishi control modules, especially those in the FX2N series and the Q series; while the CN1B may attach to a touchscreen panel. The MR-J2S-500A servo amplifier may connect to a personal computer that contains a MR Configurator using a RS-232C communication. And the CN2 port connects to the encoder of a motor that may be applies to the MR-J2S-500A another cable can link the servo motor to the servo amplifier by its ‘U, V, W’ terminals. Above these terminals are the ‘L1, L2, L3’ which can connect to a magnetic contractor that then concatenates to a circuit breaker.

Here are the source material that may have been referenced:
http://dl.mitsubishielectric.com/dl/fa/document/catalog/servo/l03007/l03007d.pdf;
http://www.andreoniautomazione.it/mr-j2-super-catalogue_gb.pdf


Technical Specifications

Part Number: MR-J2S-500A (MRJ2S500A)
Module Type: Servo Amplifier
Voltage/Frequency: 200-230VAC, 50/60Hz, 3-phase
Output Wattage: 5kW
Weight: 10.8lbs (4.9kg)


Related Parts

MR-J2S-500B - Mitsubishi Melservo MR-J2 Servo Amplifier,, 5KW, 200V, SSC NETWORK (MRJ2S500B)
HC-SFS502 - Mitsubishi Melservo HC Servo Motor, 5KW (HCSFS502)
HC-RFS353 - Mitsubishi Melservo HC Servo Motor (HCRFS353)
HC-RFS353B - Mitsubishi Melservo HC Servo Motor with Brake (HCRFS353B)
HC-RFS353BK - Mitsubishi Melservo HC Servo Motor with Brake Key (HCRFS353BK)
HC-RFS503 - Mitsubishi Melservo HC Servo Motor, 5KW (HCRFS503)
HC-UFS352K - Mitsubishi Melservo HC Servo Motor with Key, 3.5KW (HCUFS352K)
HC-UFS352BK - Mitsubishi Melservo HC Servo Motor with Brake Key, 3.5KW (HCUFS352BK)



Shipping and Order Information

  • TRW Supply can usually ship in stock items same day before 3:30 PM EST for no extra cost and before 5 PM with a rush fee
  • Mitsubishi MELSERVO MR-J2 Shipping options vary by location. Call for an accurate quote.

Warranty

  • The Mitsubishi MR-J2S-500A comes with a two year warranty.
  • A three year warranty is available. Please inquire for pricing.
