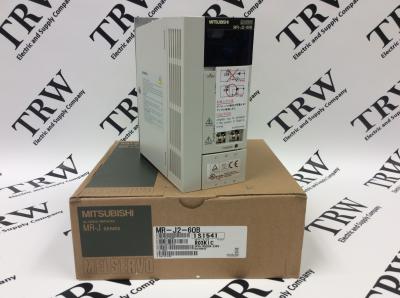

MR-J2-60B


Part Number - MR-J2-60B

MR-J2-60B is

In Stock Ships Today!


Contact us to place an order or request a quote:

1-800-479-8084 | sales@trwsupply.com



Rate the MR-J2-60B
5.0/5 on 1 review



Product Details

  • Melservo MR-J2 Input Output Servo Amplifier (MRJ260B)
  • Manufacturer: Mitsubishi
  • Series: MELSERVO MR-J2

Product Description

The MR-J2-60B (MRJ260B) is a Melservo MR-J2 series input output servo amplifier with a 170V power supply. This servo amplifier has a power supply with a voltage that runs on both 1- or 3-phases and a standard frequency of 50/60Hz. If it operates in 3-phases, then the voltage will span from 200 to 230VAC. The voltage is granted to have an aggrandized voltage range of 170 to 253VAC. The MR-J2-60B servo amplifier runs on 1-phase, then the voltage will be 230VAC and it is permitted to ambit between 207 to 253VAC. The frequency is allowed to waver between +5% and -5% of 50/60Hz.

The MR-J2-60B input output servo amplifier can create a connection with four different servo motors. These are the servo motors that are applicable to this specific servo amplifier: the HA-FF43, HA-FF63, HC-SF52, and HA-SF53. The two connections demanded of the servo amplifier are made as described in the following paragraph.

Incorporated into the MR-J2-60B input output servo amplifier are many ports and screw terminals. The CN1A and CN1B connect with counterpart MR-J2-B servo amplifiers. The CN2 port can connect to the encoder of the selected servo motor. The servo motor must also connect to the power supply of the MR-J2-60B servo amplifier by connecting to its ‘U, V, and W’ screw terminals. The last of the ports, the CN3 port, attaches itself to a personal computer which deploys a specific software. Finally, the L1, L2, and L3 screw terminal connects to a FR-BAL reactor that links to a magnetic contactor, which then connects to a circuit breaker.

Here is the manual that may have been referenced:
https://dl.mitsubishielectric.com/dl/fa/document/manual/servo/ib67288/ib67288c.pdf


Technical Specifications

Part Number: MR-J2-60B (MRJ260B)
Module Type: Input Output Servo Amplifier
Voltage/Frequency: 200 to 230VAC, 3-phase 50/60Hz; 230VAC, 1-phase 50/60Hz
INPUT: 3.2 AMP
OUTPUT: 3.6 AMP
230 VAC
50/60 HZ
170V
0-360 HZ
Weight: 2.45lbs (1.1kg)
