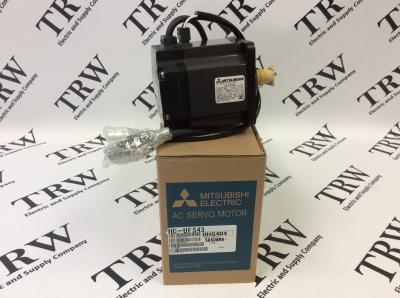

HC-UFS43


Part Number - HC-UFS43

HC-UFS43 is

In Stock Ships Today!


Contact us to place an order or request a quote:

1-800-479-8084 | sales@trwsupply.com



Rate the HC-UFS43
Be the 1st to rate this product listing!



Product Details

  • Melservo HC 400W Output Servo Motor HCUFS43)
  • Manufacturer: Mitsubishi
  • Series: MELSERVO HC

Product Description

The Mitsubishi HC-UFS43 (HCUFS43) is a Melservo HC series servo motor with an output wattage of 400W. The servo motor has a moment of inertia of 0.365 J(x10^-4kg x m^2) or 1.995 J(oz x in^2). The ordinary speed of this servo motor is 3000rpm. It can function at an authorized speed of 4500rpm and may even temporarily reach speeds of 5175rpm. The HC-UFS43 servo motors torque is gauged to be 1.3 (N x m) or 184.1 (oz x in). The greatest torque permitted by the servo motor is 3.8 (N x m) or 538.1 (oz x in). The current is generally 2.8 Amp, but it may operate at 9.24 Amp.

The four servo amplifiers are MR-J2S-40CL, MR-J2-40B, MR-J2S-40CP, and MR-J2S-40A, that are appropriate for the HC-UFS43 servo motor. This is how the servo motor may be linked to the chosen amplifier. The first means is to attach the encoder cable with the encoder which is a member of the motor. Then the encoder cable may unite with the CN2 port of the designated servo amplifier. Also, another cable must be attached to the HC-UFS43 motor, and at the other end, the cable can divide between three terminals, U, V, and W. The purpose for this connection is to link the HC-UFS43 motor to the power supply in the amplifier.

The HC-UFS43 servo motor is a flat (standard) model from the HC-UFS series. The rotation per minute is rated to be 3000rpm which is a small capacity motor.

Here is the source material that may have been referenced:
http://dl.mitsubishielectric.com/dl/fa/document/catalog/servo/l03007/l03007d.pdf


Technical Specifications

Part Number: HC-UFS43 (HCUFS43)
Module Type: Output Servo Motor
Voltage: 119V
RPM: 3000
Output Wattage: 400W
Weight: 3.75lbs (1.7kg)


Related Parts

F943GOT-LWD - Mitsubishi Operator Interface
MR-J4-100B - Mitsubishi Melservo MR-J4 Servo Amplifier
HC-UFS72K - Mitsubishi Melservo HC Servo Motor with KEY



Shipping and Order Information

  • TRW Supply can usually ship in stock items same day before 3:30 PM EST for no extra cost and before 5 PM with a rush fee
  • Mitsubishi MELSERVO HC Shipping options vary by location. Call for an accurate quote.

Warranty

  • The Mitsubishi HC-UFS43 comes with a two year warranty.
  • A three year warranty is available. Please inquire for pricing.
