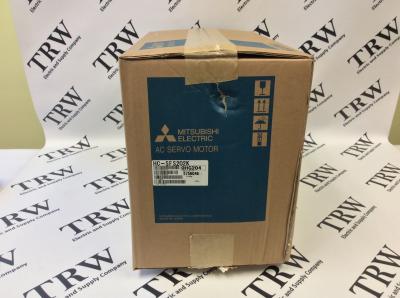

HC-SFS202K


Part Number - HC-SFS202K

HC-SFS202K is

In Stock Ships Today!


Contact us to place an order or request a quote:

1-800-479-8084 | sales@trwsupply.com



Rate the HC-SFS202K
Be the 1st to rate this product listing!



Product Details

  • Melservo HC Servo Motor with Key (HCSFS202K)
  • Manufacturer: Mitsubishi
  • Series: MELSERVO HC

Product Description

The Mitsubishi HC-SFS202K (HCSFS202K) is a Melservo HC series servo motor with a key. The servo motors moment of inertia is due to the fact that it is of the standard type, is 42.5 J(x10^-4kg x m^2) or 232 J(oz x in^2). The speed of the servo motor with a key is generally 2000rpm, but it is allowed to function at a higher speed of 2500rpm. The greatest speed absolutely attainable is 2875rpm, but this speed can only be retained for a short time. The HC-SFS202K servo motor with key also has a standard torque of 9.55 (N x m) or 1352.3 (oz x in). The highest torque allowed is 28.5 (N x m) or 4035.6 (oz x in). The current customarily operates at 11.0 Amp, but it can be authorized to function at 33.0 Amp.

The HC-SFS202K servo motor with key can link to four different servo amplifiers. They are these: the MR-J2S-200CL, MR-J2S-200A, MR-J2S-200CP, and MR-J2S-200CL. This is how to attach the servo motor to the chosen amplifier. The servo amplifier uses its CN2 port as its means to attach to the encoder of the HC-SFS202K servo motor by using an encoder cable. The next connection that must be made is in order to create a linkage with the power supply. To create this linkage, one must attach the power supply cable which should be hooked to the HC-SFS202K servo motor with a key to the top three screw terminals from one of the appurtenant servo amplifier. The screw terminals are the U, V and W terminals.

Here is the source material that may have been referenced:
http://dl.mitsubishielectric.com/dl/fa/document/catalog/servo/l03007/l03007d.pdf
http://www.andreoniautomazione.it/mr-j2-super-catalogue_gb.pdf


Technical Specifications

Part Number: HC-SFS202K (HCSFS202K)
Module Type: Servo Motor with Key
Voltage: 138V
RPM: 2000
Output Wattage: 2kW
Weight: 26.4lbs (12kg)
