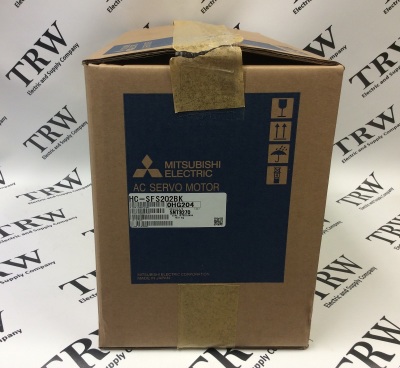

HC-SFS202BK


Part Number - HC-SFS202BK

HC-SFS202BK is

In Stock Ships Today!


Contact us to place an order or request a quote:

1-800-479-8084 | sales@trwsupply.com



Rate the HC-SFS202BK
4.7/5 on 3 reviews



Product Details

  • Melservo HC Servo Motor with Brake and Key (HCSFS202BK)
  • Manufacturer: Mitsubishi
  • Series: MELSERVO HC

Product Description

Melservo HC AC Servo Motor Systems

Servo and Motion system products provide solutions for applications as simple as a single axis point-to-point system through to fully synchronised 96 axis systems.

The Mitsubishi HC-SFS202BK (HCSFS202BK) is a 2kW Melservo HC servo motor with a brake and key. The speed normally is estimated to run on 2000rpm but it is capable of operating at a higher speed of 2500rpm, the greatest attainable speed that the servo motor may temporarily have is 2875rpm. The moment of inertia is 52.5 J(z10^-4kg x m^2) or 287 J(oz x in^2) because the HC-SFS202BK servo motor has a brake. The servo motor also has a torque which is usually 9.55 (N x m) or 1352.3 (oz x in); however the obtainable torque is 28.5 (N x m) or 4035.6 (oz x in). Lastly, the HC-SFS202BK servo motor has a current of 11.0A and the greatest permissible current is 33.0A.

There are a couple of ways that this servo motor, the HC-SFS202BK, may connect with the servo amplifier. The primary approach to be taken is to attach the encoder of the servo motor to the CN2 port of the servo amplifier by using the encoder cable. The other connection is made by the screw terminals in the applicable servo amplifier. The HC-SFS202BK servo motor must attach using a power supply cable to these terminals (U, V, and W) so it may link with the power supply. These are the servo amplifiers that can concatenate to the HC-SFS202BK servo motor as is shown above are these: the MR-J2S200A, MR-J2S-200B, MR-J2S-200CL, and MR-J2S-CP.

The HC-SFS202BK servo motor is a medium capacity motor; it is also has a medium inertia.

Servo Amplifiers

With their 32bit RISC processors, these advanced servo amplifiers include features such as Real Time Adaptive Tuning and Zero-speed macro vibration suppression. Real Time Adaptive Tuning is unique to Mitsubishi's servo amplifiers. It automatically tunes to match the load, it also has the capability to adjust these values even if the load changes. It is easy and fast to set-up for optimum response without compromising performance.

Here is the source material that may have been referenced:
http://dl.mitsubishielectric.com/dl/fa/document/catalog/servo/l03007/l03007d.pdf
http://www.andreoniautomazione.it/mr-j2-super-catalogue_gb.pdf


Technical Specifications

Part Number: HC-SFS202BK (HCSFS202BK)
Module Type: Servo Motor with Brake and Key
Voltage: 138V
RPM: 2000
Output Wattage: 2kW
Weight: 39.7lbs (18kg)


Related Parts

A1NCPU - Mitsubishi A Series CPUs Control Module
HC-SF202G2129 - Mitsubishi Melservo HC Servo Motor
HC-MFS73BK - Mitsubishi Melservo HC Servo Motor with Brake Key (HCMFS73BK)



Shipping and Order Information

  • TRW Supply can usually ship in stock items same day before 3:30 PM EST for no extra cost and before 5 PM with a rush fee
  • Mitsubishi MELSERVO HC Shipping options vary by location. Call for an accurate quote.

Warranty

  • The Mitsubishi HC-SFS202BK comes with a two year warranty.
  • A three year warranty is available. Please inquire for pricing.
