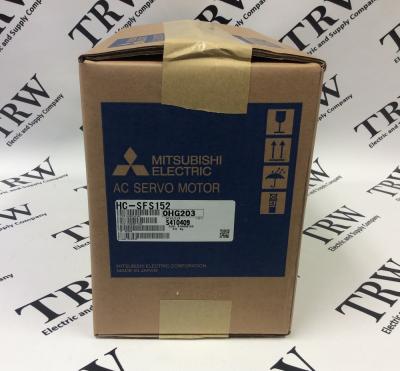

HC-SFS152


Part Number - HC-SFS152

HC-SFS152 is

In Stock Ships Today!


Contact us to place an order or request a quote:

1-800-479-8084 | sales@trwsupply.com



Rate the HC-SFS152
5.0/5 on 2 reviews



Product Details

  • Melservo HC Servo Motor 1.5kW (HCSFS152)
  • Manufacturer: Mitsubishi
  • Series: MELSERVO HC

Product Description

The Mitsubishi HC-SFS152 (HCSFS152) is a Melservo HC series servo motor with a 1.5kW output wattage. The servo motor speed may be augmented to 3000rpm and may even temporarily attain a speed of 3450rpm. The current that is normally evaluated is 9.0 Amp, but it is allowed to operate at 27.0 Amp. The standard moment of inertia of the HC-SFS152 is 20.0 J(x10^-4kg x m^2) or 109 J(oz x in^2). The torque rated for the servo motor is 7.16 (N x m) or 1013.9 (oz x in), but it may be able to obtain a higher torque of 21.6 (N x m) or 3058.6 (oz x in).

There are quite a few amplifiers that are suitable for the HC-SFS152 servo motor. These are those appurtenant amplifiers: the MR-J2S-200A, MR-J2S-200B, MR-J2S-200CP, and MR-J2S-200CL. There are only two ways that the servo motor may concatenate with the designated servo amplifier, which will be described. The HC-SFS152 servo motor may first attach to the CN2 port of the chosen amplifier by its encoder while employing an encoder cable. The second place to connect is upon the amplifier’s three top screw terminals, namely, the U, V, W terminals. This connection can be made with the servo motor power cable in order to connect with the power supply.

The HC-SFS152 servo motor may is a medium inertia motor with a like capacity because it is from the HC-SFS2000 series. There are a few different applications that this servo motor is appropriate for.

Here is the source material that may have been referenced:
http://dl.mitsubishielectric.com/dl/fa/document/catalog/servo/l03007/l03007d.pdf
http://www.andreoniautomazione.it/mr-j2-super-catalogue_gb.pdf


Technical Specifications

Part Number: HC-SFS152 (HCSFS152)
Module Type: Servo Motor
Voltage: 122V
RPM: 2000
Output Wattage: 1.5kW
Weight: Standard 19.8lbs (9kg)


Related Parts

HC-UFS73 - Mitsubishi HC Servo Motor (HCUFS73)
MR-J4-100B - Mitsubishi Melservo MR-J4 Amplifier
HC-UFS72K - Mitsubishi Melservo HC Servo Motor with Key



Shipping and Order Information

  • TRW Supply can usually ship in stock items same day before 3:30 PM EST for no extra cost and before 5 PM with a rush fee
  • Mitsubishi MELSERVO HC Shipping options vary by location. Call for an accurate quote.

Warranty

  • The Mitsubishi HC-SFS152 comes with a two year warranty.
  • A three year warranty is available. Please inquire for pricing.
