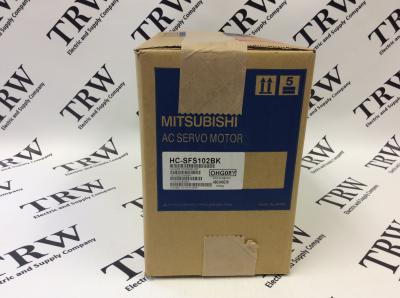

HC-SFS102BK
HC-SFS102BK is
In Stock Ships Today!Contact us to place an order or request a quote:
1-800-479-8084 | sales@trwsupply.comProduct Details
- Melservo HC Servo Motor with Brake and Key (HCSFS102BK) 1K
- Manufacturer: Mitsubishi
- Series: MELSERVO HC
Product Description
The Mitsubishi HC-SFS102BK (HCSFS102BK) is a 1kW Melservo HC series servo motor with a brake and key. The speed is generally 2000rpm for the servo motor; however, the speed is permitted to operate at 3000rpm. The servo motor may even briefly attain a speed of 3450rpm. The moment of inertia is 15.7 J(x10^-4kg x m^2) or 85.8 J(oz x in^2). The moment is as high as it is because it has a brake. The HC-SFS102BK servo motor has a torque of 4.78 (N x m0 or 676.8 (oz x in). The torque may be authorized to be aggrandized to 14.4 (N x m) or 2039.0 (oz x in). The current is 6.0A, standardly, but it is permitted to reach a maximum of 18.0A.The four servo motors that may be applied to the HC-SFS102BK motor are the MR-J2S-100CP, MR-J2S-100B, MR-J2S-100A, and MR-J2S-100CL. The servo amplifier can be united to the HC-SFS102BK servo motor as will be described. At first, the servo motor’s encoder must link to the CN2 port. This is achieved from the unification of an encoder cable is which links to the port and encoder. Then to attach to the power supply which is comprised by the servo amplifier that is chosen. The HC-SFS102BK servo motor with brake and key must concatenate with a power supply cable which will connect it to the U, V, and W screw terminals that are on the uppermost row on any of the appointed servo amplifiers that are applicable to this particular servo motor.
Here is the source material that may have been referenced:
http://dl.mitsubishielectric.com/dl/fa/document/catalog/servo/l03007/l03007d.pdf
http://www.andreoniautomazione.it/mr-j2-super-catalogue_gb.pdf
Technical Specifications
Part Number: HC-SFS102BK (HCSFS102BK)Module Type: Servo Motor with Brake and Key
Voltage: 123V
RPM: 2000
Output Wattage: 1kW
Weight: Standard 19.8lbs (9kg)
Related Parts
HF-KP43B - Mitsubishi HF Series Servo Motor with Brake (HFKP43B)MR-J4-100B - Mitsubishi Melservo MR-J4 Servo Amplifier
HC-UFS72K - Mitsubishi Melservo HC Servo Motor with KEY
Shipping and Order Information
- TRW Supply can usually ship in stock items same day before 3:30 PM EST for no extra cost and before 5 PM with a rush fee
- Mitsubishi MELSERVO HC Shipping options vary by location. Call for an accurate quote.
Warranty
- The Mitsubishi HC-SFS102BK comes with a two year warranty.
- A three year warranty is available. Please inquire for pricing.
