HC-SFS102B

HC-SFS102B is

In Stock Ships Today!

Contact us to place an order or request a quote:

1-800-479-8084 | sales@trwsupply.com

Rate the HC-SFS102B

4.0/5 on 1 review

Product Details

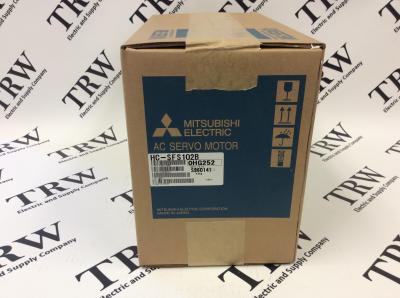

Melservo HC Servo Motor with Brake (HCSFS102B)
Manufacturer: Mitsubishi
Series: MELSERVO HC

Product Description

The Mitsubishi HC-SFS102B (HCSFS102B) is a 1kW Melservo HC series servo motor with a brake. The usual speed is 2000rpm for this servo motor, but it may achieve a faster speed of 3000rpm. It may even briefly obtain a speed of 3450rpm. The moment of inertia is greater than the regular type is. It is 15.7 J(x10^-4kg x m^2) or 85.8 J(oz x in^2). The current for the HC-SFS102B servo motor with brake is 6.0A, but it may be increased to a current from 18.0A. The torque is normally 4.78 (N x m) or 676.8 (oz x in); it can be augmented to a higher torque of 14.4 (N x m) or 2039.0 (oz x in).

The HC-SFS102B servo motor with a brake may link with the MR-J2S-100A, MR-J2S-100B, MR-J2S-100CL, or MR-J2S-100CP servo amplifiers. This is how the servo amplifiers may be applied. The first way is to attach the servo motor’s encoder with an encoder cable to the CN2 port belonging to the servo amplifier that is chosen. After this connection is secured, the HC-SFS102B servo motor must link to a power supply. Linkage to the power supply is first created by concatenating a power supply cable to the HC-SFS102B servo motor. The connection to the selected servo amplifier is accomplished by making a nexus that issues from the cable mentioned. The wires that come forth then need to be clamped down upon the three screw terminals (the U, V, and W) which are positioned in a row upon the front of any of the applicable servo amplifiers.

Here is the source material that may have been referenced:
http://dl.mitsubishielectric.com/dl/fa/document/catalog/servo/l03007/l03007d.pdf;
http://www.andreoniautomazione.it/mr-j2-super-catalogue_gb.pdf

Technical Specifications

Part Number: HC-SFS102B (HCSFS102B)
Module Type: Servo Motor with Brake
Voltage: 123V
RPM: 2000rpm
Output Wattage: 1kW
Weight: Standard 19.8lbs (9kg)

Related Parts

HC-KFS43 Mitsubishi Melservo HC Servo Motor (HCKFS43)
HC-KFS43B - Mitsubishi Melservo HC Servo Motor with Brake (HCKFS43B)
HF-KP43B - Mitsubishi HF Series Servo Motor with Brake (HFKP43B)

Shipping and Order Information

TRW Supply can usually ship in stock items same day before 3:30 PM EST for no extra cost and before 5 PM with a rush fee
Mitsubishi MELSERVO HC Shipping options vary by location. Call for an accurate quote.

Warranty

The Mitsubishi HC-SFS102B comes with a two year warranty.
A three year warranty is available. Please inquire for pricing.
