HC-SFS102

HC-SFS102 is

In Stock Ships Today!

Contact us to place an order or request a quote:

1-800-479-8084 | sales@trwsupply.com

Rate the HC-SFS102

4.8/5 on 4 reviews

Product Details

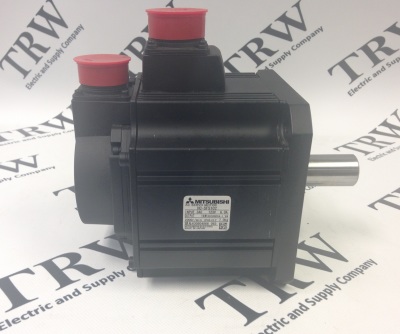

Melservo HC Servo Motor 1kW (HCSFS102)
Manufacturer: Mitsubishi
Series: MELSERVO HC

Product Description

The Mitsubishi HC-SFS102 (HCSFS102) is a Melservo HC series servo motor with an output wattage of 1kW. The servo motor has a torque of generally 4.78 (N x m) or 676.8 (oz x in), however, it may have an increased rate that is namely 14.4 (N x m) or 2039.0 (oz x in). The HC-SFS102 servo motor current is also usually 6 Amp, but it is permitted to attain a current of 18 Amp. The HC-SFS102 has a speed of 2000rpm, which can increase to 3000rpm, with a top speed of 3450rpm. The moment of inertia, which is lower than if it had a brake, is 13.7 J(x10^-4kg x m^2) or 74.9 J(oz x in^2). The HC-SFS102 1kW servo motor is both a medium inertia and a medium capacity motor.

Servo Amplifiers

There are four amplifiers, which are the MR-J2S-100CL, MR-J2S-100CP, MR-J2S-100A, and MR-J2S-100B that can be applied to the HC-SFS102 servo motor. This is the method of applying the chosen servo amplifier to the servo motor. The first way is to link the encoder cable which is coming from the encoder that is already integrated within the HC-SFS102 motor. This connection is fulfilled by attaching to the CN2 port from the appointed amplifier. A power supply cable must be utilized to connect with the power supply. This cable is linked with the HC-SFS102 servo motor and the U, V, and W screw terminals which are on the top row of screw incorporated in the front of the deployed amplifier.

Here is the source material that may have been referenced:
http://dl.mitsubishielectric.com/dl/fa/document/catalog/servo/l03007/l03007d.pdf
http://www.andreoniautomazione.it/mr-j2-super-catalogue_gb.pdf

Technical Specifications

Part Number: HC-SFS102 (HCSFS102)
Module Type: Servo Motor
Voltage: 123V
RPM: 2000
Output Wattage: 1kW
Weight: Standard 15.4lbs (7kg)

Related Parts

FX1N-40MT-ES-UL - Mitsubishi Control Module (FX1N40MTESSUL)
FX2N-64MR-ES-UL - Mitsubishi Control Module (FX2N64MRESUL)
A0J2CPU - Mitsubishi Control Module

Shipping and Order Information

TRW Supply can usually ship in stock items same day before 3:30 PM EST for no extra cost and before 5 PM with a rush fee
Mitsubishi MELSERVO HC Shipping options vary by location. Call for an accurate quote.

Warranty

The Mitsubishi HC-SFS102 comes with a two year warranty.
A three year warranty is available. Please inquire for pricing.
