HC-PQ23BK-UE


Part Number - HC-PQ23BK-UE

HC-PQ23BK-UE is

In Stock Ships Today!


Contact us to place an order or request a quote:

1-800-479-8084 | sales@trwsupply.com



Rate the HC-PQ23BK-UE
4.0/5 on 1 review



Product Details

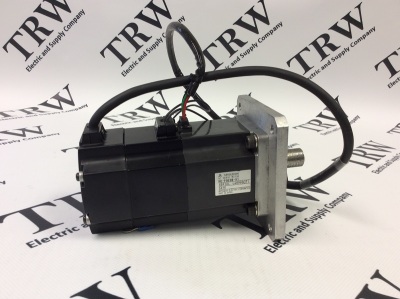

  • Melservo HC Servo Motor with Brake and Key (HCPQ23BKUE)
  • Manufacturer: Mitsubishi
  • Series: MELSERVO HC

Product Description

The Mitsubishi HC-PQ23BK-UE (HCPQ23BKUE) is a 200W servo motor with a brake and key from the Melservo HC series. The torque of the servo motor is a 90.7 (oz x in), but it this torque is permitted to increase to 271.9 (oz x in). The speed of the HC-PQ23BK-UE servo motor is 3000rpm, but it can be sanctioned to operate at a speed of 4500rpm. Though this is the case, it may temporarily achieve a speed of 5400rpm. The current of the servo motor is 1.5A; but the current is allowed to be increased to 6.0A. The HC-PQ23BK-UE servo motor also has a moment of inertia that is 0.089 J(kg x cm^2), 0.35 GD^2(kgf x cm^2), or 0.487 WK^2(oz x in^2). Also, with the evaluated torque, the power rate is 46.02kW/s, as long as the torque is sustained.

In order to connect the HC-PQ23BK-UE servo motor with brake and key to any of the applicable servo amplifier, which are the MR-C20A1-L-UE, MR-C20A1-UE, MR-C20A-L-UE, and MR-C20A-UE, a couple of cables will be utilized to fuse the two products together. The first connection is between the encoder to the CN2 port of the servo amplifier that is chosen. This connection is finished by the encoder cable of the MR-JCCBL[]M-L model, having the various lengths of two, five, or ten meters. For the power supply, the HC-PQ23BK-UE servo motor with brake and key must connect with the W screw terminal of the delegated servo amplifier while deploying the power supply cable. The servo motor has a brake it must link with a circuit that has brake control.

Here is the source material referenced:
http://www.mitsubisih.com/pdfread/web/viewer.asp?ProductName=MITSUBISHI%20HC-PQ13B%20PDF%20datasheet&brandid=2&Downloadid=55675
http://www.maxymtechnologies.com/Maxym%20Support/Drive%20Motors/Melservo%20MR-C%20Manual.pdf


Technical Specifications

Part Number: HC-PQ23BK-UE (HCPQ23BKUE)
Module Type: Servo Motor with Brake and Key
Voltage: 120V
RPM: 3000rpm
Output Wattage: 200W
