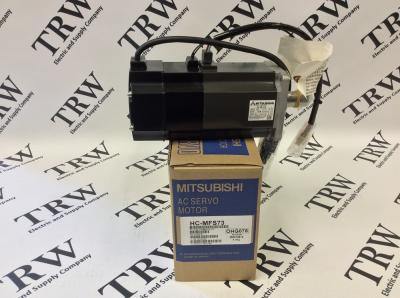

HC-MFS73


Part Number - HC-MFS73

HC-MFS73 is

In Stock Ships Today!


Contact us to place an order or request a quote:

1-800-479-8084 | sales@trwsupply.com



Rate the HC-MFS73
4.8/5 on 5 reviews



Product Details

  • Melservo HC Servo Motor (HCMFS73) 750W
  • Manufacturer: Mitsubishi
  • Series: MELSERVO HC

Product Description

The Mitsubishi HC-MFS73 (HCMFS73) is a 750W Melservo HC series servo motor with a voltage 117V. The servo motor has a torque gauged to be 2.4 (N x m) or 339.8 (oz x in). The greatest torque that this servo motor is sanctioned to have is 7.2 (N x m) or 1019.5 (oz x in). The motor has a moment of inertia that is 0.6 J(x10^-4kg x m^2) or 3.28 J(oz x in^2). The HC-MFS73 servo motor runs at an accustomed speed of 3000rpm, but it may be granted to have speeds of 4500rpms, for a small amount of time, it may reach a speed of 5175rpm. The current is generally operating at 5.1 Amp, but this may be able to operate at a higher current of 18.0 Amp.

The four servo amplifiers that are able to attach to the HC-MFS73 servo motor. They are these: the MR-J2S-70CP, MR-J2S-70B, MR-J2S-70CL, and MR-J2S-70A. This is how it might concatenate with one of these amplifiers. There are two ways they may attach: the first is a connection to the CN2 port, and the other is to link with the three screw terminals, the U, V, and W terminals. To connect to the CN2 port, an encoder cable must be attached with the HC-MFS73 servo motor’s encoder. Then the servo motor may connect to the screw terminals for a power supply linkage. A power supply cable must be used to create this linkage between the two products (the servo amplifier and the servo motor).

Here is the source material that may have been referenced:
http://dl.mitsubishielectric.com/dl/fa/document/catalog/servo/l03007/l03007d.pdf
http://www.andreoniautomazione.it/mr-j2-super-catalogue_gb.pdf


Technical Specifications

Part Number: HC-MFS73 (HCMFS73)
Module Type: Servo Motor
Voltage: 117V
RPM: 3000
Output Wattage: 750W
Weight: 6.61lbs (3.0kg)
