HC-MFS13B


Part Number - HC-MFS13B

HC-MFS13B is

In Stock Ships Today!


Contact us to place an order or request a quote:

1-800-479-8084 | sales@trwsupply.com



Rate the HC-MFS13B
4.3/5 on 3 reviews



Product Details

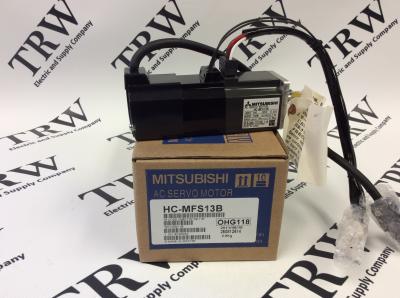

  • Melservo HC Servo Motor with Brake (HCMFS13B)
  • Manufacturer: Mitsubishi
  • Series: MELSERVO HC

Product Description

Melservo HC AC Servo Motor Systems

Servo and Motion system products provide solutions for applications as simple as a single axis point-to-point system through to fully synchronised 96 axis systems.

The Mitsubishi HC-MFS13B (HCMFS13B) is a 100W Melservo HC series servo motor with brake. The servo motors torque computed is normally 0.32 (N x m) or 45.3 (oz x in) but the torque has the ability to reach a rate of 0.95 (N x m) or 134.5 (oz x in). The speed that the servo with a brake customarily attains is 3000rpm, the speed that is authorized is 4500rpm. The HC-MFS13B servo motor is still, at least temporarily, grasp a speed of 5175rpm. The moment of inertia of the servo motor is 0.032 J(x10^-4kg x m^2) or 0.175 J(oz x in^2). Also, the HC-MFS13B servo motor has a current of 0.85 Amp that may be at its greatest, 2.6 Amp.

Servo Amplifiers

The HC-MFS13B servo motor has a number of applicable amplifiers. These are the four applicable servo amplifiers, the MR-J2S-10A, MR-J2S-10B, MR-J2S-10CP, and MR-J2S-CL. There are two ways to in which the servo motor may attach to one of the selected servo amplifiers. The first way is by connecting the encoder to the CN2 connector. The other way is by attaching the HC-MFS13B servo motor with brake to the U, V, and W.

Since the HC-MFS13B servo motor with brake is an ultra-low capacity motor with a small capacity, it can only link itself to a couple of applications that are shown on the corresponding manual of this servo motor.

Here is the source material that may have been referenced:
http://dl.mitsubishielectric.com/dl/fa/document/catalog/servo/l03007/l03007d.pdf
http://www.andreoniautomazione.it/mr-j2-super-catalogue_gb.pdf


Technical Specifications

Part Number: HC-MFS13B (HCMFS13B)
Module Type: Servo Motor with Brake
Voltage: 105V
RPM: 3000
Output Wattage: 100W
Weight: 1.96lbs (0.89kg)


Related Parts

A970GOT-TBA-B - Mitsubishi Touchscreen Operator Interface
A1S64AD - Mitsubishi Control Module (A1S-64AD)
HC-SFS202K - Mitsubishi Melservo HC Servo Motor with KEY



Shipping and Order Information

  • TRW Supply can usually ship in stock items same day before 3:30 PM EST for no extra cost and before 5 PM with a rush fee
  • Mitsubishi MELSERVO HC Shipping options vary by location. Call for an accurate quote.

Warranty

  • The Mitsubishi HC-MFS13B comes with a two year warranty.
  • A three year warranty is available. Please inquire for pricing.
