HC-KFS73B

HC-KFS73B is

Available

Contact us to place an order or request a quote:

1-800-479-8084 | sales@trwsupply.com

Rate the HC-KFS73B

4.8/5 on 4 reviews

Product Details

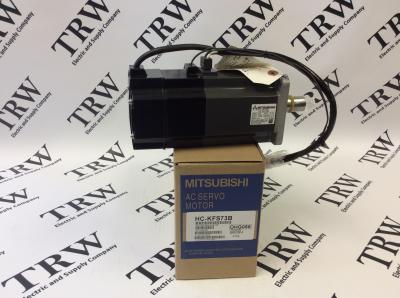

Melservo HC Servo Motor with Brake (HCKFS73B)
Manufacturer: Mitsubishi
Series: MELSERVO HC

Product Description

The Mitsubishi HC-KFS73B (HCKFS73B) is a 750W Melservo HC servo motor with a brake. This servo motor has a torque of 2.4 (N x m) 339.8 (oz x in). But the torque is permitted to augment to 7.2 (N x m) 1019.5 (oz x in). The current appraised is 5.8A, but it may be at most, 18.6A. The HC-KFS73B servo motor with a brake, has a moment of inertia of 1.635 J(x10-^4kg x m^2) or 8.938 J(oz x in^2). Then the speed of the servo motor is 3000rpm but is authorized to increase to 4500rpm. Even so, the speed it is allowed for a short time to run at is 5175rpm.

There are four amplifiers which are capable of linking to the HC-KFS73B servo motor with a brake. These are the motors that may be applied: the MR-J2S-40A, MR-J2S-40B, MR-J2S-40CP, and MR-J2S-40CL. These amplifiers can connect to the HC-KFS73B servo motor by a few modes. The encoder belonging to the servo motor with brake can connect to any of the optional servo amplifier’s CN2 port. Also the U, V, and W screw terminals may link to the HC-KFS73B servo motor as its power supply.

Since the HC-KFS73B servo motor with a brake is from the HC-KFS series, it is a low inertia motor that may attach by its spindle to a large variety of devices applicable to such motors. This motor with a brake is also a small capacity motors.

Here is the source material that may have been referenced:
http://dl.mitsubishielectric.com/dl/fa/document/catalog/servo/l03007/l03007d.pdf
http://www.andreoniautomazione.it/mr-j2-super-catalogue_gb.pdf

Technical Specifications

Part Number: HC-KFS73B (HCKFS73B)
Module Type: Servo Motor with Brake
Voltage: 111V
RPM: 3000r/min
Output Wattage: 750W
Weight: 8.81lbs (4.0kg)

Related Parts

MR-J2S-10B - Mitsubishi Melservo MR-J2 Servo Amplifier (MRJ2S10B)
MR-J2S-10A1 - Mitsubishi Melservo MR-J2 Servo Amplifier (MRJ2S10A1)
HC-KFS13 - Mitsubishi Melservo HC Servo Motor (HCKFS13)
HC-KFS13K - Mitsubishi Melservo HC Servo Motor with Key (HCKFS13K)

Shipping and Order Information

TRW Supply can usually ship in stock items same day before 3:30 PM EST for no extra cost and before 5 PM with a rush fee
Mitsubishi MELSERVO HC Shipping options vary by location. Call for an accurate quote.

Warranty

The Mitsubishi HC-KFS73B comes with a two year warranty.
A three year warranty is available. Please inquire for pricing.
