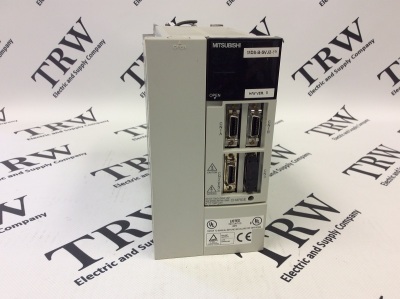

MDS-B-SVJ2-04


Part Number - MDS-B-SVJ2-04

MDS-B-SVJ2-04 is

In Stock Ships Today!


Contact us to place an order or request a quote:

1-800-479-8084 | sales@trwsupply.com



Rate the MDS-B-SVJ2-04
Be the 1st to rate this product listing!



Product Details

  • MDS Servo Drive with an Internal Power Supply (MDSBSVJ204)
  • Manufacturer: Mitsubishi
  • Series: MDS Servo Drives

Product Description

The Mitsubishi MDS-B-SVJ2-04 (MDSBSVJ204) is a MDS series servo drive with an internal power supply. This servo drive unit has 3-phases with the voltage range pertaining to these phases is 200-230VAC with the standard frequency of 50/60Hz. The normal voltage range of the MDS-B-SVJ2-04 servo drive with power supply may support a greater voltage range of 170 to 253VAC with a like frequency. The frequency itself is authorized to waver between +5% and -5%.

There is a short list of four motors that can be linked to the MDS-B-SVJ2-04 servo drive with an internal power supply are the following HA-FF63, HA-FF43C-UE, HC-MF43, or HC-MF43-S15. Connections concerning the motors with the servo drive will typically be different if they are from separate series.

For the HAFF-63 and HC-MF43, primary connection is with the encoder to the MDS-B-SVJ2-04 servo drive’s CN2 port. This connection may first be made by a small detector cable which is only 0.3M; if a longer cable is needed, the MR-JHSCBL[]M-H bay attach to the detector cable’s connector. The power supply cable can be linked to the U, V, W screw terminals, then, another wire can be grounded. Then the MDS-B-SVJ2-04 servo drive also has a wire used as a brake lead.

For the HA-FF43C-UE and HC-MF43-S15 motor, connections with the MDS-B-SVJ2-04 servo drive with a power supply is identical to the former two servo motors (omitting the brake lead) except that different cables are used. The encoder cable for the HA-FF43C-UE, the CNV2C cable must be utilized. The HC-MF43-S15 has a detector lead (RM15WTP-10P) that may link with a MR-RMCBL[]M with the encoder and a RM15WTP-4P cable for the power supply.

Here is the manual referenced:
https://dl.mitsubishielectric.com/dl/fa/document/manual/cnc/bnp-b3937(eng)/bnp-b3937(eng)k.pdf


Technical Specifications

Part Number: MDS-B-SVJ2-04 (MDSBSVJ204)
Module Type: Servo Drive with an Internal Power Supply
Voltage/Frequency: 3-phase, 200-230VAC, 50/60Hz
Output Wattage: 0.4kW
Weight: 1.54lbs (0.7kg)


Related Parts

A1NCPU - Mitsubishi A Series CPUs Control Module
HC-UFS72K - Mitsubishi Melservo HC Servo Motor with KEY (HCUFS72K)
HC-UFS73 - Mitsubishi Melservo HC Servo Motor (HCUFS73)



Shipping and Order Information

  • TRW Supply can usually ship in stock items same day before 3:30 PM EST for no extra cost and before 5 PM with a rush fee
  • Mitsubishi MDS Servo Drives Shipping options vary by location. Call for an accurate quote.

Warranty

  • The Mitsubishi MDS-B-SVJ2-04 comes with a two year warranty.
  • A three year warranty is available. Please inquire for pricing.


Additional Information

TRW Electric & Supply Company is a global automation supplier. We deliver reliable new and refurbished parts at a great value. Our product focus is Omron and Mitsubishi products, but we have been able to provide our customers with solutions from other manufacturers as well. Our goal is to supply the automation industry with the best service and pricing, and of course conduct business with a high level of integrity.
