GT1455-QTBDE
GT1455-QTBDE is
In Stock Ships Today!In Stock Ships Today!Contact us to place an order or request a quote:
1-800-479-8084 | sales@trwsupply.comProduct Details
- GOT1000 Touchscreen Operation Terminal (GT1455QTBDE)
- Manufacturer: Mitsubishi
- Series: GOT1000
Product Description

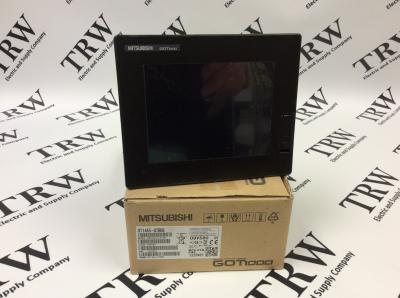

The Mitsubishi GT1455-QTBDE (GT1455QTBDE) is a GOT1000 series operation terminal with a touchscreen. The touchscreen size is 5.7in using a diagonal measurement and the weight being 1.54lbs (0.7kg). The dimensions of the whole operation terminal is, gauging in width by height by depth, in metric units is 164mm by 135mm by 55mm or in English units, 6.46in by 5.32in by 2.17in. The GT1455-QTBDE operation terminal has a display (width by height) of 115mm by 86mm (4.53in by 3.39in). The display characters can appear in either 16-dot or 12-dot. With a 16-dot font, there can be 20 characters spread along 15 lines. The 12-dot font can manage 26 characters on 20 lines. The key sizes can be at minimum of 2 by 2 dots. The GT1455-QTBDE operation terminal touchscreen can present 65,536 distinct colors.The GT1455-QTBDE touchscreen operation terminal has a power supply of 24VDC and a current of 30 Amp. Its power consumption is 8.40W unless the back light is off, it is then 7.44W. And the GT1455-QTBDE’s memory is 9MB. The touchscreen also uses the suitable GT11-50BAT lithium battery. This operation terminal has many built-in interfaces for the RS-422/485, RS-232, and a USB cable. There is also an interface for an Ethernet connection and a SD card.
The GOT1000 operation terminal has a protective structure of IP67, meaning it is entirely free from dust contravention and can be submerged in water for up to 30 minutes. The ambient operating temperatures should be between 32 to 122oF (0-50oC). If these temperatures are not retained, the normal operations of the GT1455-QTBDE will be affected.
Here is the source material referenced:
https://docs.rs-online.com/cee2/0900766b815b7da9.pdf
https://www.enclosurecompany.com/ip-ratings-explained.php
Technical Specifications
Part Number: GT1455-QTBDE (GT1455QTBDE)Module Type: Touchscreen Operation Terminal
Weight: 1.54lbs (0.7kg)
Panel Size: 5.7 inches
Memory: 9.0 MB
Related Parts
F943GOT-LWD - Mitsubishi Operator InterfaceA0J2HCPU - Mitsubishi A Series CPUs A0J2 Controller
A4UCPU - Mitsubishi INPUT OUTPUT Controller
Shipping and Order Information
- TRW Supply can usually ship in stock items same day before 3:30 PM EST for no extra cost and before 5 PM with a rush fee
- Mitsubishi GOT1000 Shipping options vary by location. Call for an accurate quote.
Warranty
- The Mitsubishi GT1455-QTBDE comes with a two year warranty.
- A three year warranty is available. Please inquire for pricing.
