FX3U-48MR-ES


Part Number - FX3U-48MR-ES

FX3U-48MR-ES is

In Stock Ships Today!


Contact us to place an order or request a quote:

1-800-479-8084 | sales@trwsupply.com



Rate the FX3U-48MR-ES
4.5/5 on 2 reviews



Product Details

  • FX Series Input Output Control Module (FX3U48MRES)
  • Manufacturer: Mitsubishi
  • Series: FX Series

Product Description

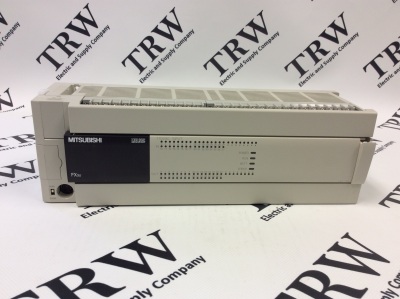

The Mitsubishi FX3U-48MR-ES (FX3U48MRES) is a FX series input output control module with 48 points. This control module has 24 input points and 24 output points and a RAM memory of 64,000 steps. The instructions for this control module are divided into three type sequences, the step ladder and applied sequence. There are twenty-nine of the first type, two of the second and two hundred eighteen of the third. These instructions occurring in the FX3U-48MR-ES control module take 0.21ms for each instruction that is basic and for the applied, it takes at least 0.5ms.

The FX3U-48MR-ES FX Series control module has a sink or source input group and a relay output group. The power supply has a voltage that is 100 to 240VAC and the power consumption is 40W.

The FX3U-48MR-ES input output control module is a main unit of the FX3U family series, it is responsible for many different connections in a configuration. Such connections are with specific adapters that are responsible for temperature control or position or even memory storage. Other connections may be made with extension modules that are powered (each applicable unit is has both input and output terminals) and extension blocks that are not powered (these may either be an input, output, or both input and output type). The FX3U-48MR-ES control module may also attach with a power supply module. All these connection may be made by an extension connector that is incorporated on the side of the control module.

Here is the source material referenced:
http://dl.mitsubishielectric.co.jp/dl/fa/document/catalog/plc_fx/b215/b215_a_h.pdf


Technical Specifications

Part Number: FX3U-48MR-ES (FX3U48MRES)
Module Type: Input Output Control Module
Number of Input Output Points: 48
Weight: 1.87lbs (0.85kg)


Related Parts

FX3U48MRESK - Mitsubishi FX Series STARTER KIT
MR-J4-100B - Mitsubishi Melservo MR-J4 Servo Amplifier
HF-KP43B - Mitsubishi HF Series Servo Motor with Brake (HFKP43B)



Shipping and Order Information

  • TRW Supply can usually ship in stock items same day before 3:30 PM EST for no extra cost and before 5 PM with a rush fee
  • Mitsubishi FX Series Shipping options vary by location. Call for an accurate quote.

Warranty

  • The Mitsubishi FX3U-48MR-ES comes with a two year warranty.
  • A three year warranty is available. Please inquire for pricing.
