FX2N-4AD
FX2N-4AD is
In Stock Ships Today!Contact us to place an order or request a quote:
1-800-479-8084 | sales@trwsupply.comProduct Details
- FX Series Analog Input Block (FX2N4AD)
- Manufacturer: Mitsubishi
- Series: FX Series
Product Description

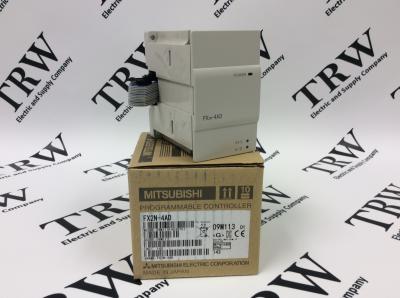

The Mitsubishi FX2N-4AD (FX2N4AD) is an analog input block from the FX series. The block has four channels that are input channels. The voltage input spans from -10 to 10VDC; the current input is -20 to 20mA. The conversion speed for the channels is 15ms for every channel if it runs at a normal speed and 6ms per channel when it runs at a high speed.The BFMs (buffer memory) in the FX2N-4AD analog input block are allotted to channels or other location. BFMs are labeled #0 to #31. BFM #13 to #31 are placed in various locations such as ‘reserved’ or other miscellaneous place. BFM #0 is for channel initialization which begins with its default of ‘HOOOO’; the first ‘O’ controls channel 4, etc. Numbers 0 to 3 may replace the ‘Os’. ‘0’ has a range of -10V to 10V, ‘1’ spans from 4mA to 20mA, ‘2’ has a -20mA to 20mA ambit, and ‘3’ means the channel is OFF. For example, if the command ‘H2313’ is given to the FX2N-4AD, channel 1 and 3 are OFF, channel 2 has the current range of 4mA to 20mA, and channel 4 has a current range of -20mA to 20mA. Groups #1-#4, #5-#8, and #9-#12 are each located in channels 1, 2, 3, and 4.
When placed in a configuration, the FX2N-4AD block can be placed with PLCs from the FX1N, FX2N, or FX2NC series. It must be placed with a FX2NC-CNV-IF. The analog input block takes up eight points when it is connected with an expansion bus.
Here is the source material referenced:
http://www.mitsubisih.com/pdfread/web/viewer.asp?ProductName=MITSUBISHI%20FX2N-128MR-ES/UL%20PDF%20datasheet&brandid=2&Downloadid=51541;
https://dl.mitsubishielectric.com/dl/fa/document/manual/plc_fx/jy992d65201/jy992d65201f.pdf
Technical Specifications
Module Type: Analog Input Block FX2N-4ADNumber of Channels: 4
Weight: 0.66lbs (0.3kg)
Shipping and Order Information
- TRW Supply can usually ship in stock items same day before 3:30 PM EST for no extra cost and before 5 PM with a rush fee
- Mitsubishi FX Series Shipping options vary by location. Call for an accurate quote.
Warranty
- The Mitsubishi FX2N-4AD comes with a two year warranty.
- A three year warranty is available. Please inquire for pricing.
TRW Electric & Supply Company is a global automation supplier. We deliver reliable new and refurbished parts at a great value. Our product focus is Omron and Mitsubishi products, but we have been able to provide our customers with solutions from other manufacturers as well. Our goal is to supply the automation industry with the best service and pricing, and of course conduct business with a high level of integrity.
A Mitsubishi Authorized Distributor for FX-SERIES is not the only source for Mitsubishi products. Many of the Mitsubishi products have been discontinued and therefore are no longer available from authorized suppliers. TRW Electric & Supply has many new and refurbished Mitsubishi FX-SERIES parts available for purchase.
